Overview

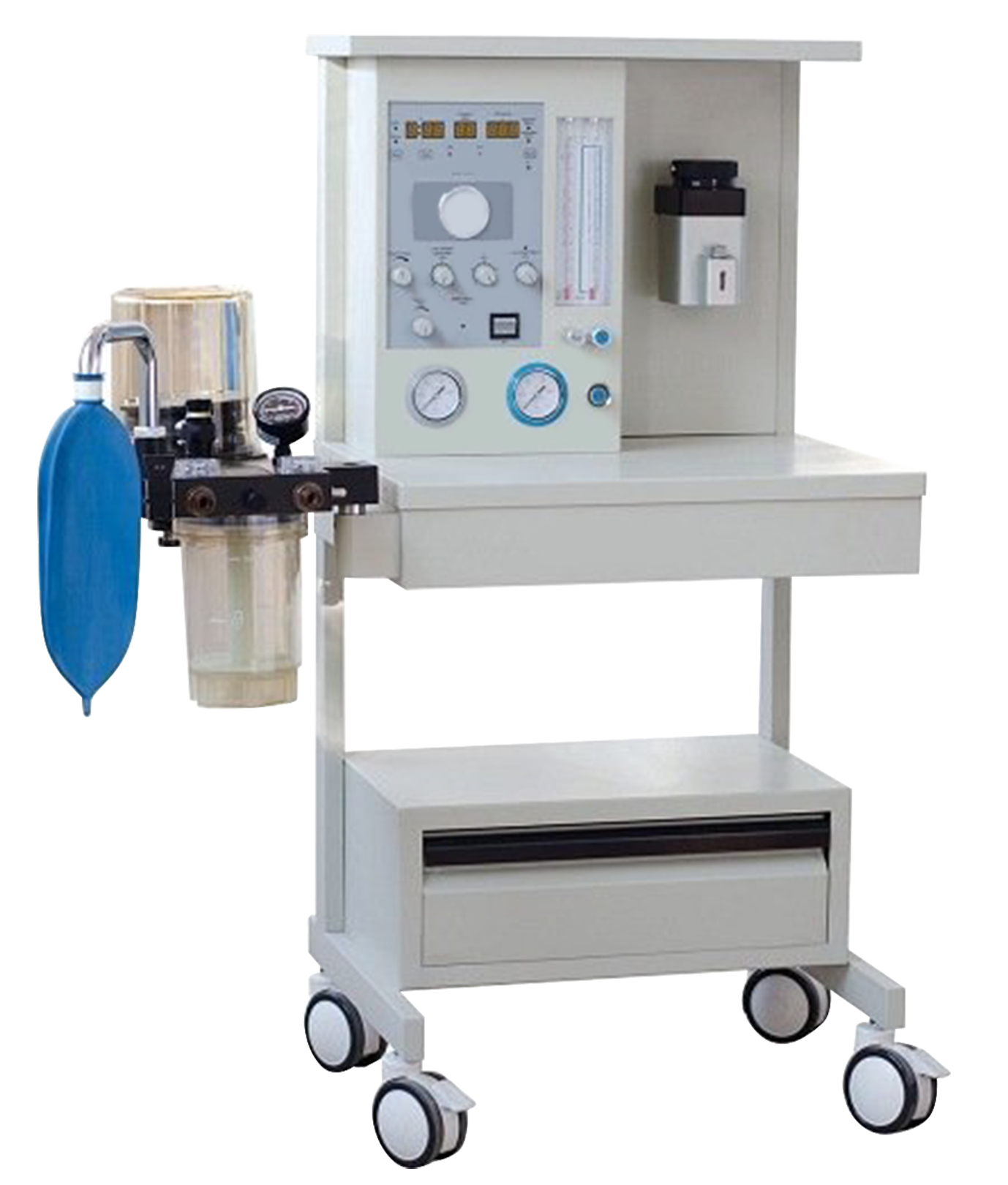

Anaesthesia System KAM-A200 is equipped with LED screen for clear display of trends, dosage rate and other setting parameters. System complies with closed, semi-closed, semi-open ventilation. Fully integrated pneumatically driven electronic system offers 3 ventilation modes with specialized CO2 absorber based breathing systems. Comprehensive alarm indication for critical events increases patient safety.
Features
Pneumatic controlled flow
Ventilation modes: A/C, IPPV, SIPPV, Manual
Vaporizer : Enflurane/Isoflurane
Dual flow-meter
Suitable for adult as well as pediatric care
Patient monitor (optional)
specifications
| Drive |
Electronically controlled, pneumatic driven |
| Tidal Volume |
0 ml ~ 1500 ml |
| Ventilation Modes |
A/C, IPPV, SIPPV, Manual |
| Gas Configuration |
O2, N2O |
| LCD Display |
LED display screen |
| Vaporizer |
Isoflurane / Enflurane |
| Medical Gas Pressure Range |
0.32 mPa ~ 0.6 mPa |
| Air Pressure Range |
0.32 mPa ~ 0.5 mPa |
| Maximum Safety Pressure |
≤ 12.5 kPa |
| I:E Range |
1:1.5 ~ 1:1.3 |
| O2 Flush |
25 L/min ~ 75 L/min |
| O2 Concentration |
> 21% |
| Respiration Rate |
4 bpm ~ 40 bpm |
| Error Tolerance |
≤ ± 4 % |
| O2 Flow meter |
0.1 L/min ~ 10 L/min |
| N2O Flow meter |
0.1 L/min ~ 10 L/min |
| Pressure Safety Valve |
<12.5 k Pa |
| Airway Pressure Alarm |
Lower limit 0.2 kPa ~ 5 kPa Upper limit 0.3 kPa ~ 6 kPa |
| Tidal Volume Alarm |
Lower limit 0 ml ~ 1800 ml Upper limit 50 ml ~ 2000 ml |
| Ventilation Volume Alarm |
Lower limit 0 L/ml ~ 12 L/ml Upper limit > 18 L/ml |
| CO2 Absorber |
Soda lime tank |
| Storage: Ambient Temperature |
-15°C to 50°C |
| Storage: Relative Humidity |
< 95% |
| Storage: Atmospheric Pressure |
86 kPa ~ 106 kPa |
| Power Supply |
100 V ~ 120 V AC, 50/60 Hz |
| Dimension |
830 x 770 x 1230 mm |
| Weight |
75 Kgs |
application
Used in Surgical or Gynaecological departments to administer appropriate anaesthesia dosage at a specified rate to ensure effective sedation during surgeries and other invasive diagnostic or interventional procedures.
