Overview

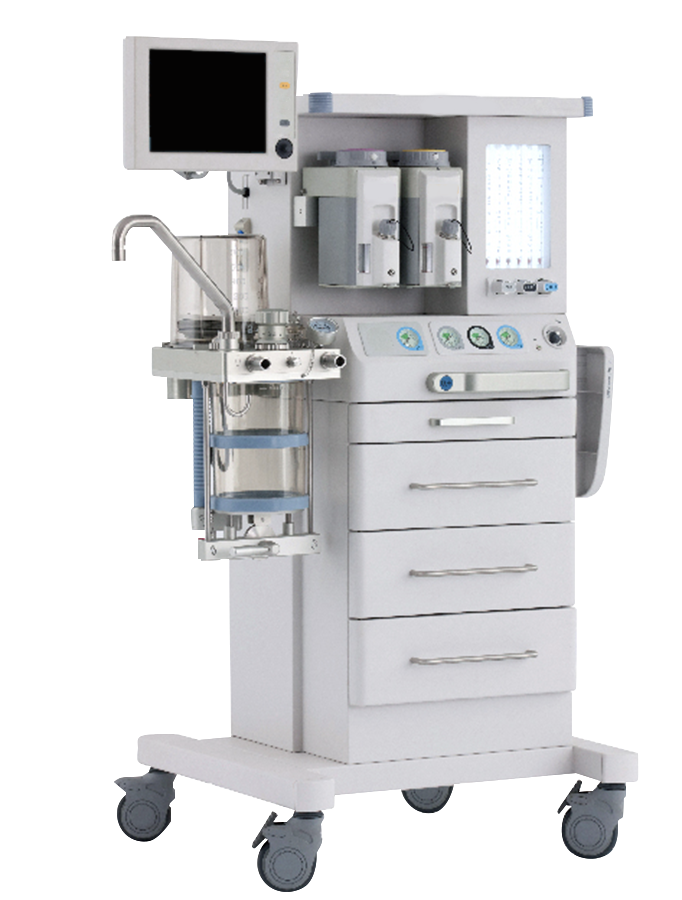

Anaesthesia System KAM-B100 is fully featured high-end general anaesthesia workstation equipped with wide screen display for respiratory trends, and other vital parameters. PCV and SIMV + PS modes ensure flexible ventilation. Comprehensive monitoring and intelligent gas flush and cut-off system for critical events improves patient safety.
Features
Integrated 10.4” Monitor screen
Ventilation modes: IPPV, PCV, SIMV + PS, PS and Manual
CO2 Absorption: 3 Litre Autoclavable Tank
Flowmeter: minimum 25% O2/N2O mixture concentration
Double Vaporizer with Selectatec interlock
Comprehensive safety alarms with mute
Suitable for central or non-central OT
Suitable for Adult, Pediatric and Infant
Monitoring of O2, CO2 and anaesthetics (optional)
Heated Breathing system (optional)
specifications
| Ventilation Modes |
IPPV, PCV, SIMV + PS, PS and Manual |
| Tidal Volume |
20 ml to 1500 ml |
| Pressure (Inspiratory) |
5 cmH2O – 70 cmH2O |
| Pressure (Support) |
3 cmH2O – 50 cmH2O |
| Electronic PEEP |
Off / 3 cmH2O – 30 cmH2O |
| I: E Ratio |
4:1 to 1:8 |
| Display |
10.4” TFT Colour |
| Drive |
Pneumatically driven and electronically controlled |
| Pressure Trend |
Paw, Ppeak, Pplat, Pmean, PEEP |
| Volume Monitoring |
MV, VT, Freq |
| Graph Display |
P-T, F-T, P-V, F-V |
| Ventilation Gas (Optional CO2, AG, MAC) |
FiO2 |
| Operational modes |
Closed, Semi-closed, Semi-open |
| Gas Supply |
O2 , Air, N2O |
| Ventilator Pressure at Inlet |
280 kPa ~ 600 kPa |
| Flowmeter |
O2 : 0 ~ 10L/min Air : 0 ~ 12L/min N2O : 0 ~ 10L/min Auxiliary O2 : 0 ~ 12L/min |
| Vaporizer |
Supports 2 vaporizers |
| CO2 Absorption Tank |
3 L Autoclavable |
| Vaporizer Filling methods |
Pour Fill Key Fill Quick-Fil |
| Anaesthetic Agents |
Halothane, Enflurane, Isoflurane, Sevoflurane |
| APL Range |
Spontaneous breathing (SP) -70 cmH2O |
| T-slope |
0 ~ 2s |
| Plateau (Inspiratory) |
Off / 5% – 60% Ti |
| Trigger Sensitivity |
1 – 15 L/min |
| Alarm |
High/Low Airway Pressure, Sustained Airway Pressure, High/Low Minute Volume, High/Low FiO2, High Breath Rate, O2 supply failure, Power failure, Apnea alarm, Mute : 110s |
| Power Supply |
100 V ~ 240 V 50/60 Hz |
| Battery |
24 V 4Ah ; 120 min |
| Dimensions |
760 × 1300 × 630mm |
| Weight |
100 Kgs |
application
Used in Surgical or Gynaecological departments to administer appropriate anaesthesia dosage at a specified rate to ensure effective sedation during surgeries and other invasive diagnostic or interventional procedures.
