Overview

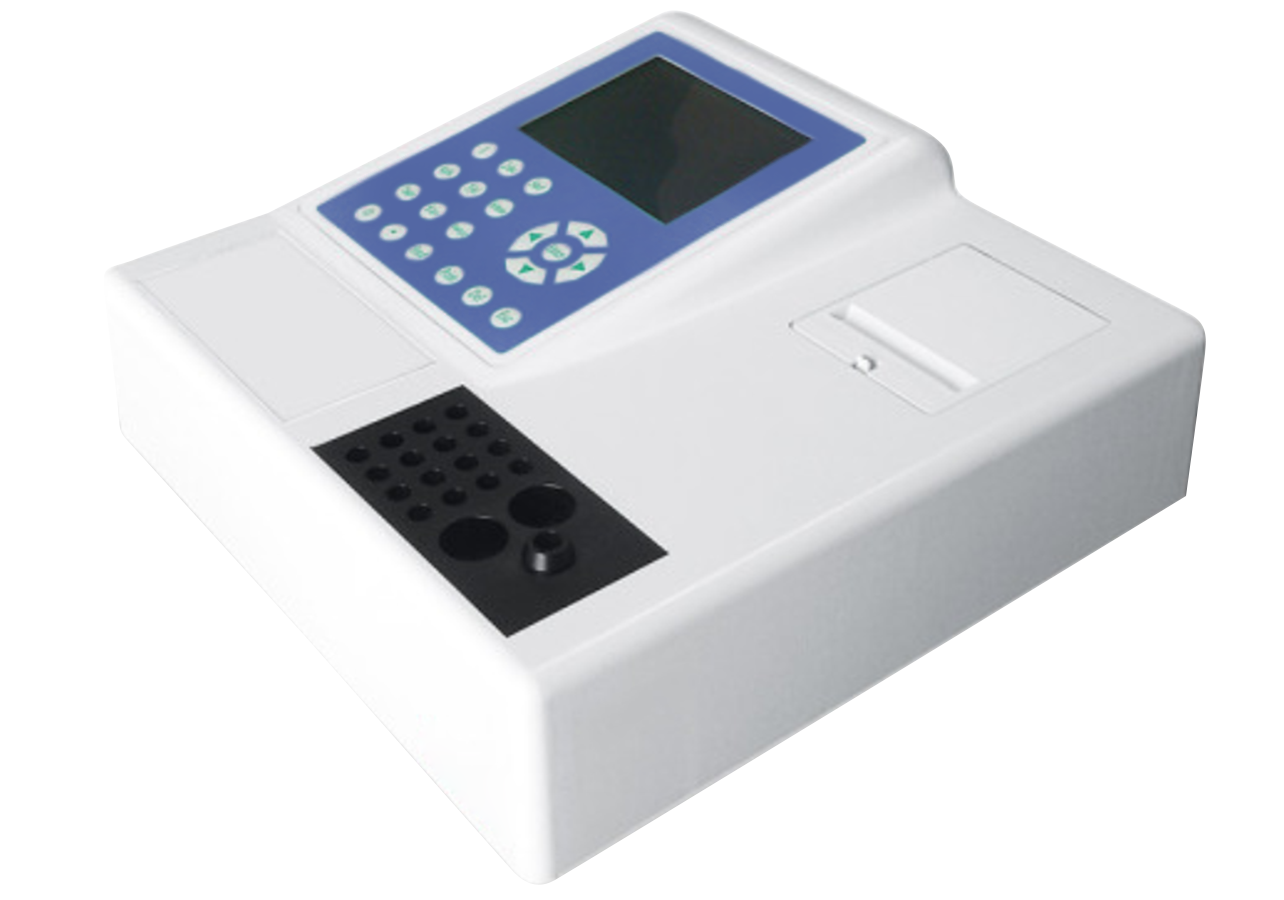

Coagulation Analyser KCG-A100 is a high-performance semi-automated benchtop coagulation analyser. Incorporated automatic stirring system speeds up and aids in sample preparation. Reaction cuvette pre-heating saves time and reduces work-effort. Large storage memory and intuitive navigation allows quick review of previous result values.
Features
Single channel analysis
Pre-programmed test menu for single assays
Lower reagent consumption
Automated storage and printout
Preparation and incubation for samples/ reagents
Up to 7 point calibration or reference curves
specifications
| Number of channels |
Single channel |
| Test parameters |
PT [Prothrombin Time] APTT [Activated Partial Thromboplastin Time] TT [Thrombin Time] FBG [Fibrinogen Concentration] Clotting Factors |
| Measurement method |
Photometric analysis |
| Display |
Back-illuminated LCD |
| Reagent volume |
50 µl ~ 100µl |
| Pre-heat temperature |
37 ± 0.2 °C |
| Capacity |
Sample: 16 positions Reagent: 2 positions |
| Storage |
Large storage memory and user-friendly review system |
| Output interface |
Built-in thermal printer |
| Power supply |
110V / 60Hz 220V / 50Hz |
| Stirring |
Automated magnetic stirring motor for cuvette |
| Dimension |
310 X 200 X 280 mm |
| Weight |
4.5 Kgs |
application
Used in small to medium sized pathological diagnostic laboratories, small or private hospital laboratories with wide range of applications in Hemostasis for diagnostic evaluation to test for Thrombo-embolytic disease, Thrombocytopenia, Impaired liver function or Hemophilia.
