Overview

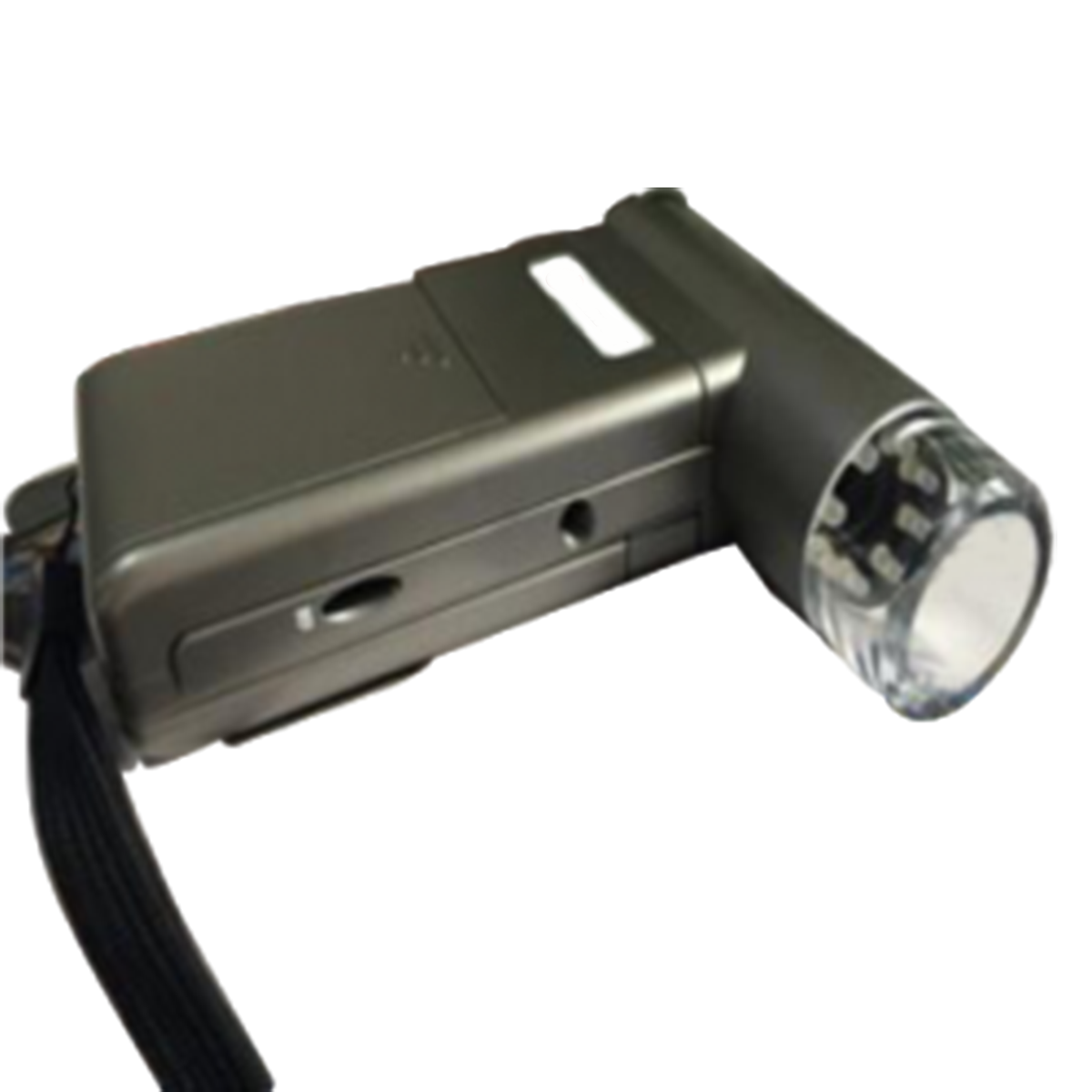

Digital Video Dermatoscope KDD-A100 is a portable, ultra-compact skin-surface examination unit equipped with lens digital magnification up to 500x and color display for effective imaging. Advanced microscopic imaging captures microscopic skin textures with detailed resolution in video as well as photographic formats. Variable brightness levels for polarization ensures vibrant images and videos.
Features
In-built Polarized as well as Non-polarized technology
Range of still Image resolutions
Variable levels of magnification
Plug-in for TV/Laptop
Integrated metal support stand
specifications
| Display |
3” TFT panel, 4:3 ratio |
| Magnification |
Optical : 20-200 X Digital : 500 X |
| Image sensor |
5 MP |
| Still image resolution |
12 M (4030x3024), 9 M, 5 M, 3 M, 1.3 M, VGA |
| Video capture resolution |
VGA, QVGA |
| Frame rate |
30 fps at VGA |
| Light source |
8 LEDS with brightness adjustable |
| Power source |
Li ion 3.7 V/1050 mAh rechargeable battery Adaptor Input: 100-240 V USB output: 5V 1A |
| TV output |
To any monitor with TV-in |
| Dimension |
130 × 103 × 29 mm |
| Weight |
195 g (With battery) |
application
Used in dermatology clinics, medical Spa to record clinical and dermatoscopic images for documenting, monitoring and supporting differential diagnosis of melanoma and other skin lesions.
