Overview

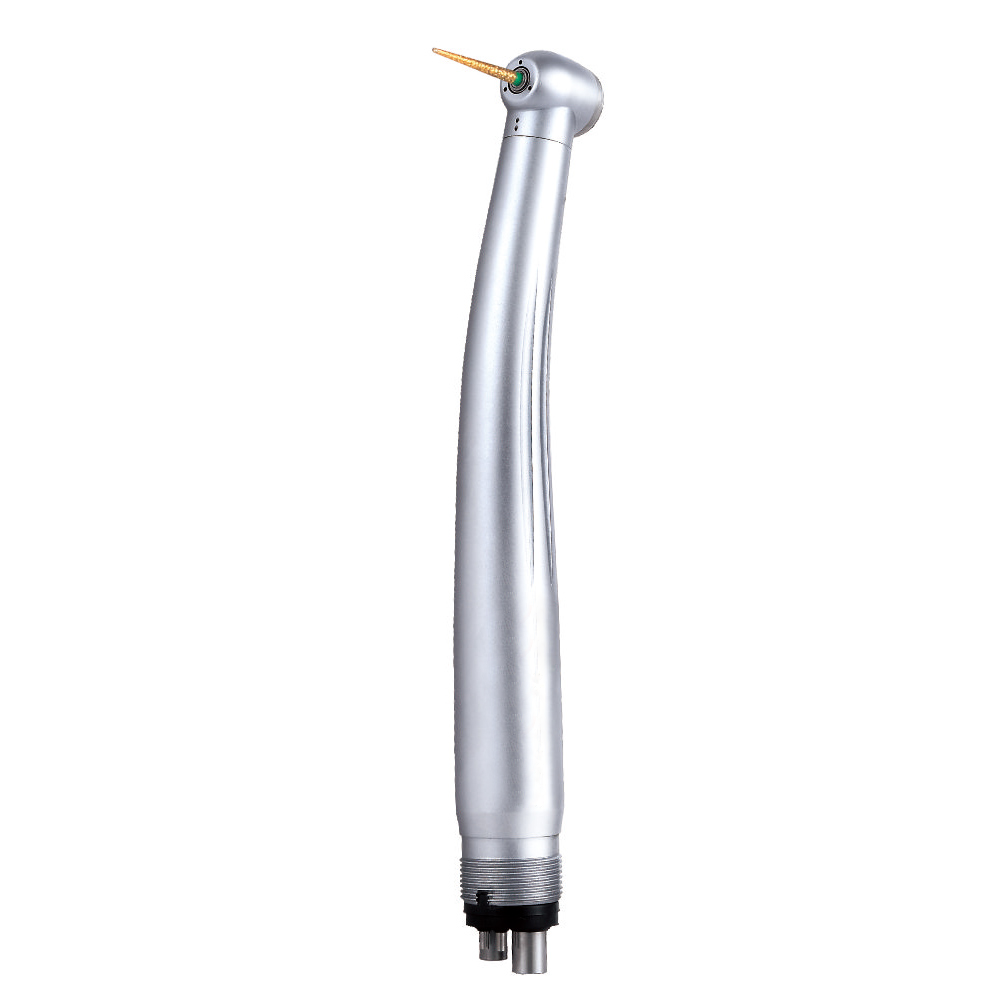

High-Speed Dental Hand piece KDH-A200 is a contra-angled fiber optic dental drill instrument. Incorporated high precision spin-motor allows stable rotation ensuring high-end performance. LED light illumination and triple-point water spray improves scope of visibility.
Features
Optical LED illumination
Anti-retraction valve mechanism
Enhanced grip control
Quick coupling
specifications
| Rotation Speed |
Up to 3,60,000 rpm |
| Torque Speed |
3,00,000 rpm |
| Bur Insertion |
Standard Push button |
| Gear Ratio |
1:1 |
| Drive |
Air driven |
| Type of Bearing |
Ceramic |
| Air Pressure |
0.2 MPa ~ 0.24 MPa |
| LED Source Life |
1000 hours |
| Tubing Connection |
6 holes |
| Construction |
Stainless steel exterior |
| Applicable Bur Size |
Diameter : 1.59 mm ~ 1.6 mm Length : 21 mm ~ 23 mm |
| Cartridge |
Collect-type |
| Noise |
< 68 dB |
| Weight |
Approx. 180 g |
application
Used in dental clinics for preparation of tooth for various procedures primarily suitable for cavity preparation, removal of tooth structure, margin creation and finishing restorations.
