Overview

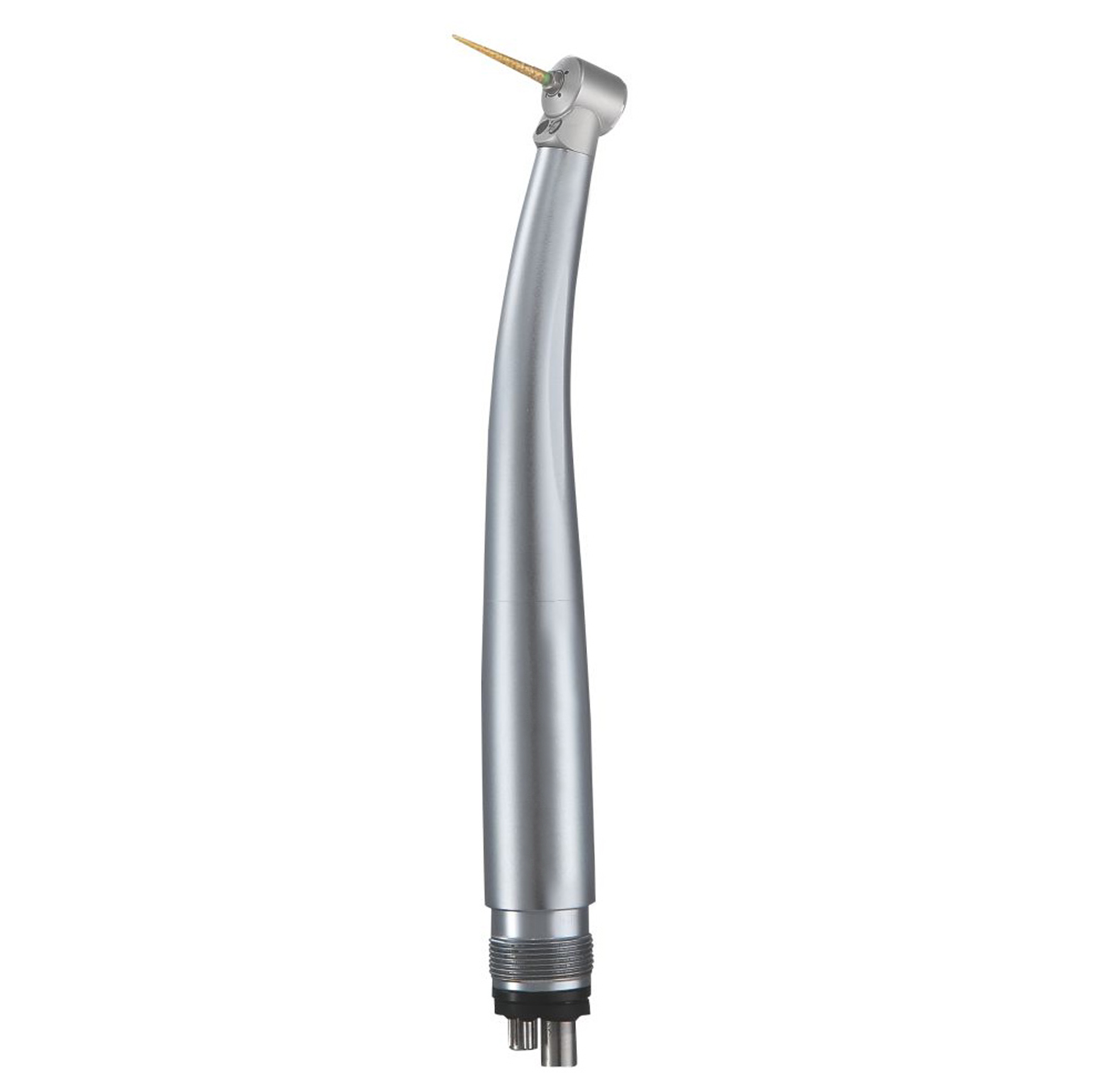

High-Speed Dental Hand piece KDH-A201 is a contra-angled air-driven dental drill instrument. High precision gears housed in miniature head design enables broader workspace. LED light illumination and single-point water spray with anti-retraction units improve scope of visibility.
Features
Double optical LED
Anti-retraction valve mechanism
Enhanced grip control
specifications
| Rotation Speed |
3,80,000 rpm to 4,00,000 rpm |
| Head Size |
8.7 x 9.5 mm |
| Bur Insertion |
Standard Push button |
| Gear Ratio |
1:1 |
| Drive |
Air driven |
| Type of Bearing |
Ceramic |
| Air Pressure |
0.25 MPa ~ 0.27 MPa (4 hole) 0.2 MPa ~ 0.22 MPa (2 hole) |
| LED Source Life |
1000 hours |
| Tubing Connection |
2 or 4 holes |
| Spray |
Single-point water spray |
| Construction |
Stainless steel exterior |
| Applicable Bur Size |
Diameter : 1.59 mm ~ 1.6 mm Length : 21 mm ~ 23 mm |
| Cartridge |
Collet-type |
| Noise |
< 58 dB |
| Weight |
Approx. 180 g |
application
Used in dental clinics for preparation of tooth for various procedures primarily suitable for cavity preparation, removal of tooth structure, margin creation and finishing restorations.
