Overview

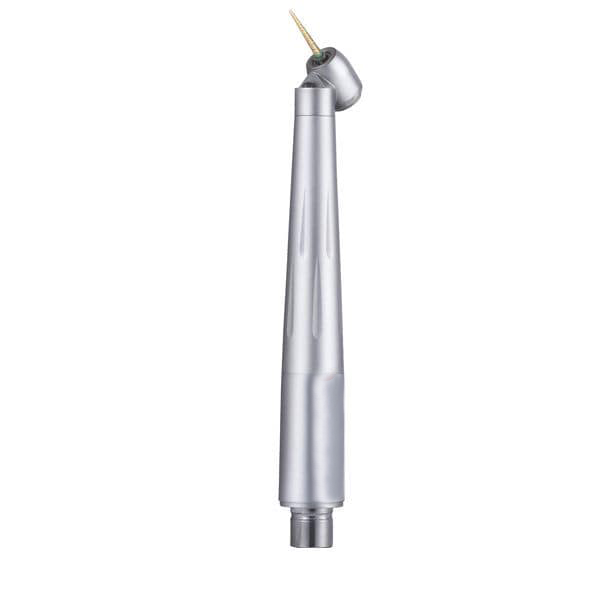

High-Speed Dental Hand piece KDH-B101 is a 45° angled air-driven dental drill instrument. Incorporated high precision gears allow stable rotation ensuring smooth cut. Clean head design ensures contamination-free nozzle for effective infection-control.
Features
Optical LED
Anti-retraction valve mechanism
Enhanced grip control
specifications
| Rotation Speed |
3,50,000 rpm to 4,00,000 rpm |
| Bur Insertion |
Standard Push button |
| Gear Ratio |
1:1 |
| Drive |
Air driven |
| Type of Bearing |
Ceramic |
| Air Pressure |
0.24 MPa ~ 0.39 MPa |
| Water Pressure |
0.2 MPa |
| LED Source Life |
1000 hours |
| Tubing Connection |
2 or 4 holes |
| Spray |
Triple-point water spray |
| Construction |
Stainless steel exterior |
| Applicable Bur Size |
Diameter : 1.59 mm ~ 1.6 mm Length : 21 mm ~ 23 mm |
| Cartridge |
Collet-type |
| Noise |
< 68 dB |
| Weight |
Approx. 180 g |
application
Used in dental clinics for preparation of tooth for various procedures primarily suitable for cavity preparation, removal of tooth structure, margin creation and finishing restorations.
