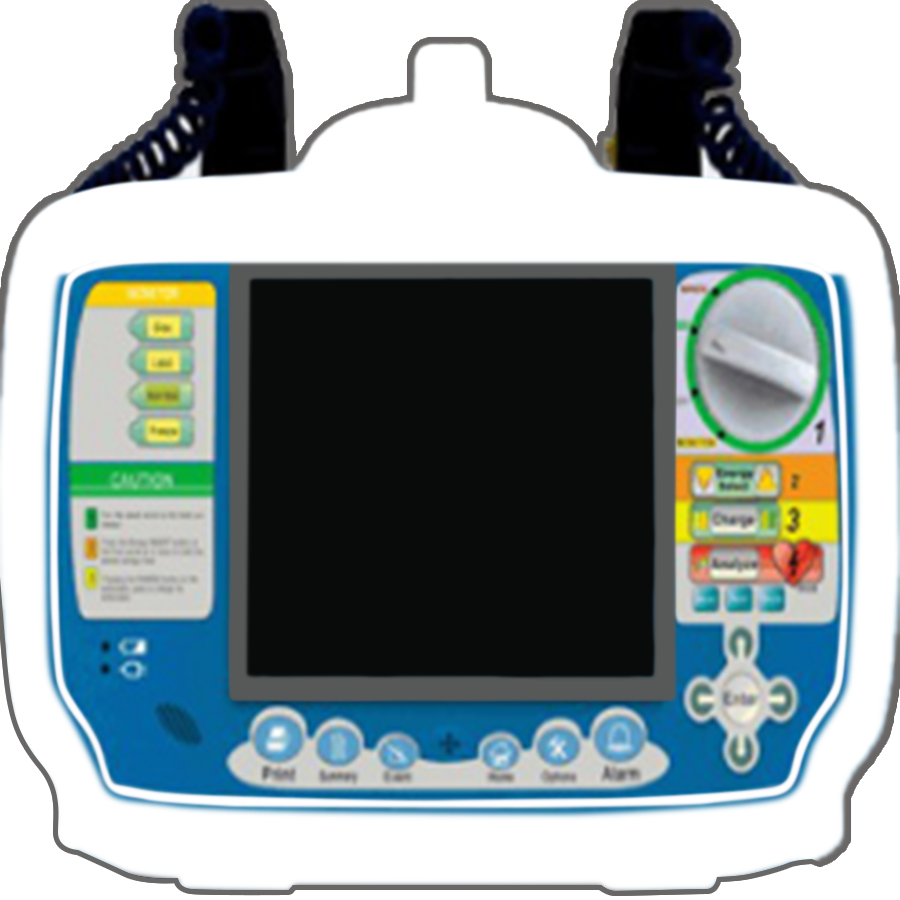

Defibrillator Monitor KDM-A100

Overview

Defibrillator Monitor KDM-A100 is a biphasic life-support clinical defibrillator equipped with provisional core functionalities which include guided automatic as well as manual defibrillation modes, advanced ECG monitoring, SpO2 monitoring and analysis for predictive arrhythmia detection as well as thermal recorder. System features high resolution screen, touch-key panel to display and select various monitoring parameters with energy navigation knob and alarm.

Features

7-inch high resolution display

AED as well as Manual defibrillation mode

Arrhythmia analysis and recording

Display parameters: Heart Rate, Lead/Pads, Audio/Mute, SpO2 level, Defibrillation energy, Alarm limits

specifications

Display	7-inch screen
Waveform	Biphasic
Manual with Sync mode	2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, 360 joules
AED mode	Auto analyze and charge x 3 with programmable auto energy level selection.
Interpreted rhythms for AED	Ventricular fibrillation ≥ 200 µV Ventricular tachycardia ≥ 140 bpm QRS complex wave duration ≥ 140 ms
Sweep Speed	25 mm/s
Electrode impedance range	0 Ω – 250 Ω
Analysis Time	Less than 7 seconds
ECG Lead selection	Displayed on monitor, paddles, I, II, III, AVR, AVL, AVF, V
ECG Heart rate	20 bpm – 300 bpm
ECG size	0.25, 0.5, 1, 1.5, 2, 4 cm/mV
ECG Heart Rate alarm	On / Off displayed on monitor, user-selectable
SpO₂measurement	30 % – 100 %
Recorder Paper Speed	12.5 mm/s, 25 mm/s, 50 mm/s
Alarm accuracy	±10 % (less than 12 sec)
Print modes	Manual or automatic, user-configurable
Battery	Rechargeable, Ni-MH battery, 12V
Dimensions	500 x 380 x 360 mm
Weight	8 Kgs

application

Used in hospital emergency wards, OT, crash-cart throughout the hospital premises, primary healthcare centers and rescue ambulance to deliver counter-shocks during sudden cardiac arrest or cardiac resuscitation situations.
