Overview

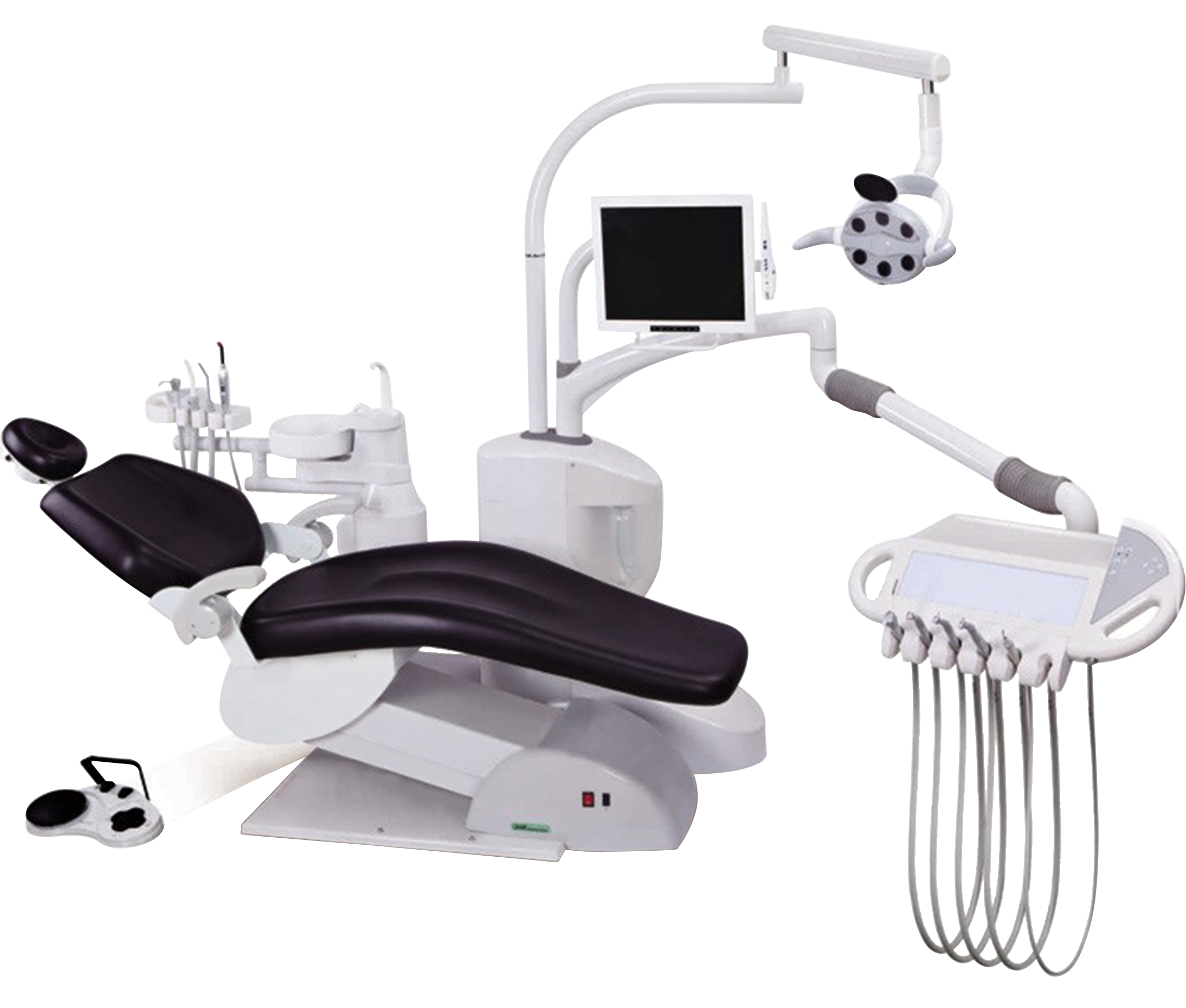

Dental Chair Unit KDU-A101 equipped with high quality chair and floor-type side box characterized by remote controller facilitate automatic control. Incorporates LED lamp, X-ray film viewer, low mounted instrument tray, suction pump system. Large seat rest designed based on human body feature give comfort to patient during operation.
Features
Electric control system
Single chair motor and foot pedal
Central suction system without vacuum pump
Three hand piece tube
Automated hot water supply
Two set built-in water purifier and dentist stool
One set operating light and monitor arm
specifications
| Chair size |
1800 × 1000 × 2000 mm |
| DC Motor |
24 V / ≤ 3.8 A |
| Operation Light |
12 V ; 50 VA (AC) |
| Input Power |
1100 VA |
| Water Supply Thermostat |
230 V ; 50/60 Hz (AC) |
| X-Ray Film Viewer |
12 VA |
| Instrument Tray Capacity |
1.5 Kg |
| Power Supply |
230 V ; 50/60 Hz (AC) |
| Weight |
250 Kgs |
application
Used in dental clinic for dental examinations and operations.
