Overview

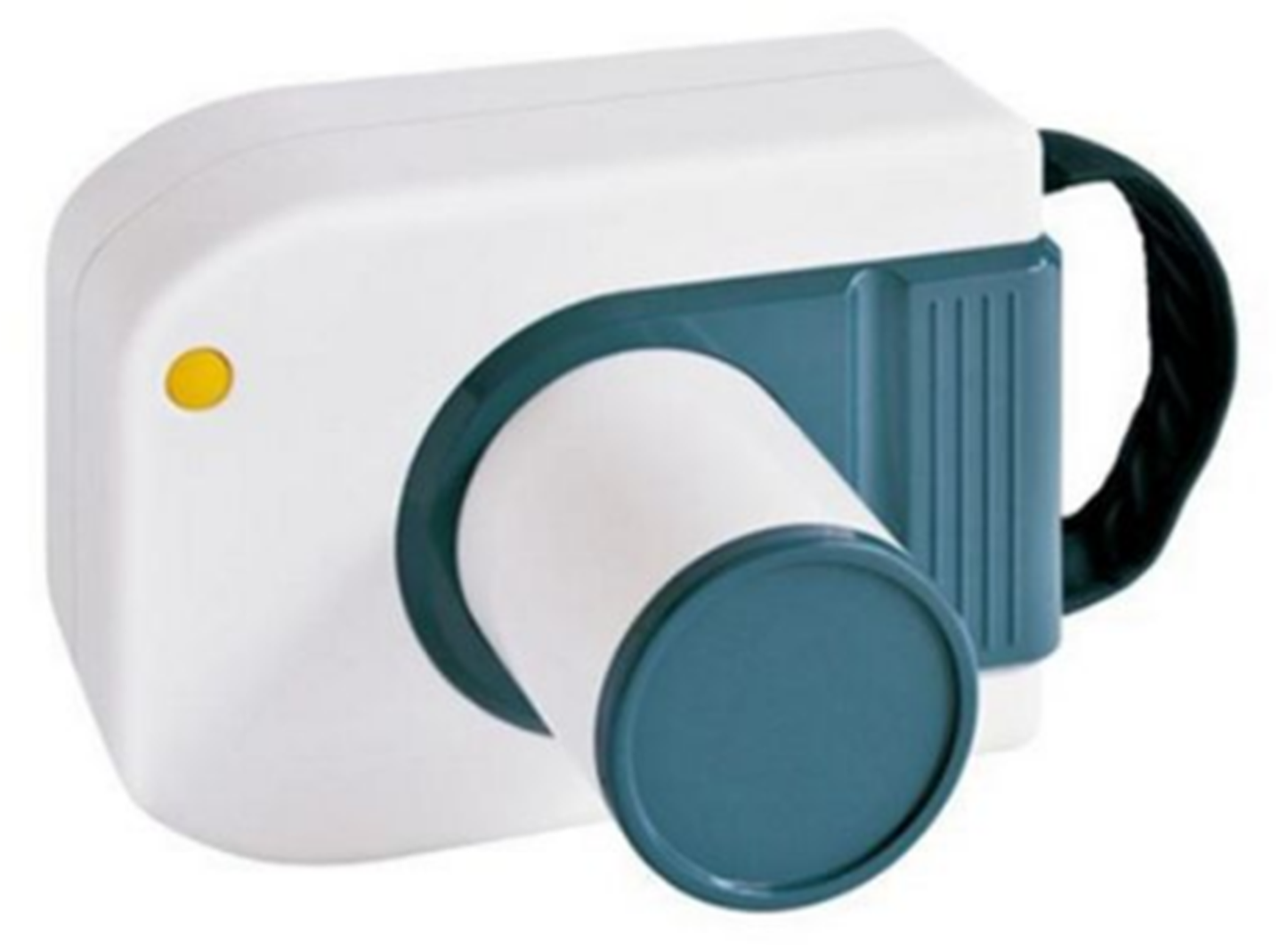

Dental X-ray KDX-A200 is a portable intra-oral imaging modality which uses high frequency DC X-ray generators for good radiographic contrast at minimal dosage. Graphic LCD screen displays various indicative parameters for exposure control and alarms. Touch key user-interface for customized exposure. Incorporated components have vacuum insulation and stereotype sealed protection for stable and extended life of equipment.
Features
Micro focus technology
Digital control panel
Accurate and quick imaging
Pneumatic controlled seat – mobile or fixed
Trusted tube quality
specifications
| Tube Voltage |
60 kV |
| Tube Current |
1 mA |
| Exposure Time |
0.02 s – 2 s |
| Tube Focus |
0.3 x 0.3 mm |
| Configuration |
Portable |
| Battery |
DC : 14.8 V, 6400 mA |
| Charger Output |
DC : 16.8 V |
| Charger Input |
AC 100 V-240 V ±10 % |
| Frequency |
30 kHz |
| Power Rating |
60 VA |
| SSD (Source Skin Distance) |
130 mm |
| Dimension |
138 x 165 x 185 mm |
| Weight |
2.2 Kgs |
application
Used in dental clinics for dental X-ray imaging to reveal impacted teeth, advanced periodontal disease, sinusitis and to plan treatment dentures, braces, extractions or implants
