Overview

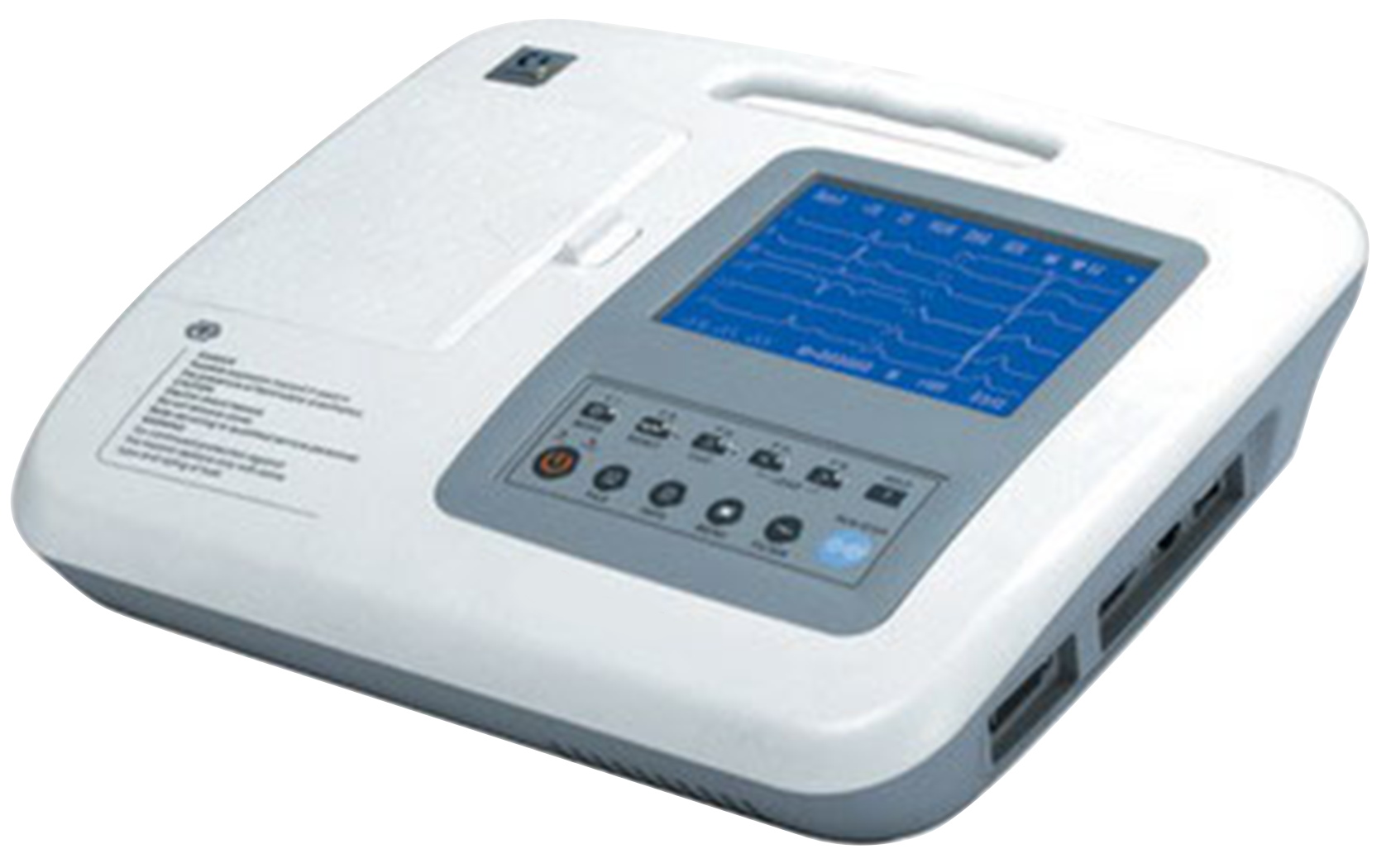

Six Channel ECG Machine KEC-B100 is equipped with a high resolution 6” LCD real-time color display of waveforms. KEC-B100 performs 12-lead ECG simultaneous acquisition with 3 operational modes namely Auto, Manual and Analysis. Our system ensures optimal safety against defibrillators and pacemakers. Equipped with digital noise & EMG filters to deliver accurate results along with automatic baseline drift prevention facility for systematic print results
Features
12-lead ECG simultaneous acquisition
Selectable ECG report formats (Standard/Cabrera)
Default patient data storage up to 12 ECG
Selectable print modes (Auto/Man/Ana)
Digital filters eliminate noise, motion artifacts and prevent baseline drift
Patient data storage expandability up to 250 ECGs (Optional)
Alarms for lead-off and low battery conditions
Network connectivity with PC for data transfer (Optional)
specifications
| LCD Display |
6” LCD real-time |
| Expandable Storage |
Up to 250 ECGs |
| Paper Speed |
5 / 6.25 / 10 / 12.5 / 25 / 50 (mm/s) |
| Sensitivity |
2.5, 5, 10, 20, 40 (mm/mV), Auto |
| Safety Standard |
IEC Class I, Type CF |
| Acquisition Mode |
12 lead parallel |
| Channel Display |
6 CH |
| Input Circuit |
Floating, protection against Defibrillator & Pacemaker |
| Input Circuit Current |
≤ 50 nA |
| Input Impedance |
≥ 50 MΩ |
| A/D Converter |
12 bit |
| Time Constant |
≥3.2 s |
| Frequency Response |
0.05 Hz to 165 Hz |
| Built-in Storage |
Up to 12 ECGs |
| Connectivity |
RS-232 serial port |
| Calibration Voltage |
1 mV ± 2 % |
| Noise Level |
<15 µ Vp-p |
| Anti-Baseline Drift |
Auto |
| EMG Filter |
35 Hz ~ 45 Hz (- 3 dB) |
| ADS Filter |
(0.15 Hz - 0.50 Hz) Auto |
| HUM Filter |
50 Hz/60 Hz (-20 dB) |
| CMRR |
≥ 100 dB |
| Leakage Current |
< 10 µA |
| Paper Width |
112 mm |
| Paper Length |
20/30 mm |
| Power supply |
AC: 110/220 V, 50/60 Hz, 85 V ~ 265 V (optional) DC: 14.4 V |
| Built-in Battery |
Rechargeable Lithium |
| Dimension |
345 mm x 300 mm x 80 mm |
| Weight |
2.5 Kgs |
application
Used in clinics, hospitals & emergency wards to diagnose and detect symptoms of various heart disease and arrhythmias, determine a patient’s response to drug therapy, and reveal trends or changes in heart function.
