Overview

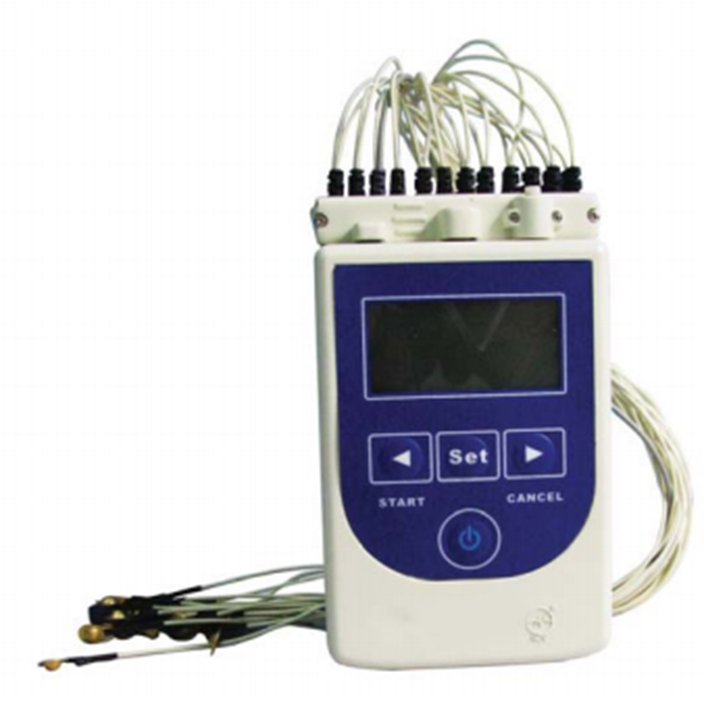

EEG Machine KEEG-A100 is a 20 channel EEG system which performs recording, monitoring, acquisition and storage of cortical electrical activities to track brain wave patterns. Supports real-time EEG waveform recording and display. Compact continuous monitoring device with bluetooth as well as USB connectivity for data transmission. Combined display of configuration chart and channel configuration source simplifies channel editing.
Features
Single-shield electrodes with DIN interface
Real-time as well as long-term monitoring
Accurate readings and printable waveforms
Configurations : Routine and Ambulatory (Optional)
Connectivity : USB as well as bluetooth
HD video/Infra-red video synchronous with EEG data (Optional)
specifications
| Input channel |
(19 Monopolar EEG and 1 Bipolar ECG) |
| Recording modes |
Real-time (via Bluetooth) / Dynamic (via Flash memory) |
| Sampling Rate |
128, 256, 512 Hz |
| A/ Converter |
12 bit |
| Electrodes |
Single-shielded electrodes with touch proof connectors |
| USB Interface |
USB 2.0/ USB 1.1 |
| Hours of operation |
72 hours continuous operation |
| Input impedance |
≥10 MOhm |
| Low-pass filter |
1 Hz ~ 60 Hz arbitrary |
| High-pass filter (Time) |
0.01s, 0.02s, 0.03s, 0.1s, 0.2s, 0.3s, 1s, 2s, 3s |
| High-pass filter (Hz) |
16Hz, 8Hz, 5.3Hz, 1.6Hz, 0.8Hz, 0.5Hz, 0.16Hz, 0.08Hz, 0.05Hz |
| CMRR |
≥100 dB |
| Noise |
≤0.5 uVRMS |
| Internal memory |
Built-in Flash memory card (2GB) |
| Operative Temperature |
±10 °C ~ +50 °C |
| Operative Humidity |
30% ~ 80% |
| Power supply |
AC 240 V 50/60 Hz 2A |
| Dimensions |
130 x 89 x 40 mm |
| Weight |
250 g |
application
Used in sleep clinics, psychiatric wards and neurology departments to monitor seizure disorders, evaluate patient’s cognitive states, identify lesion sites and study the effect of drugs and psychological treatment.
