Overview

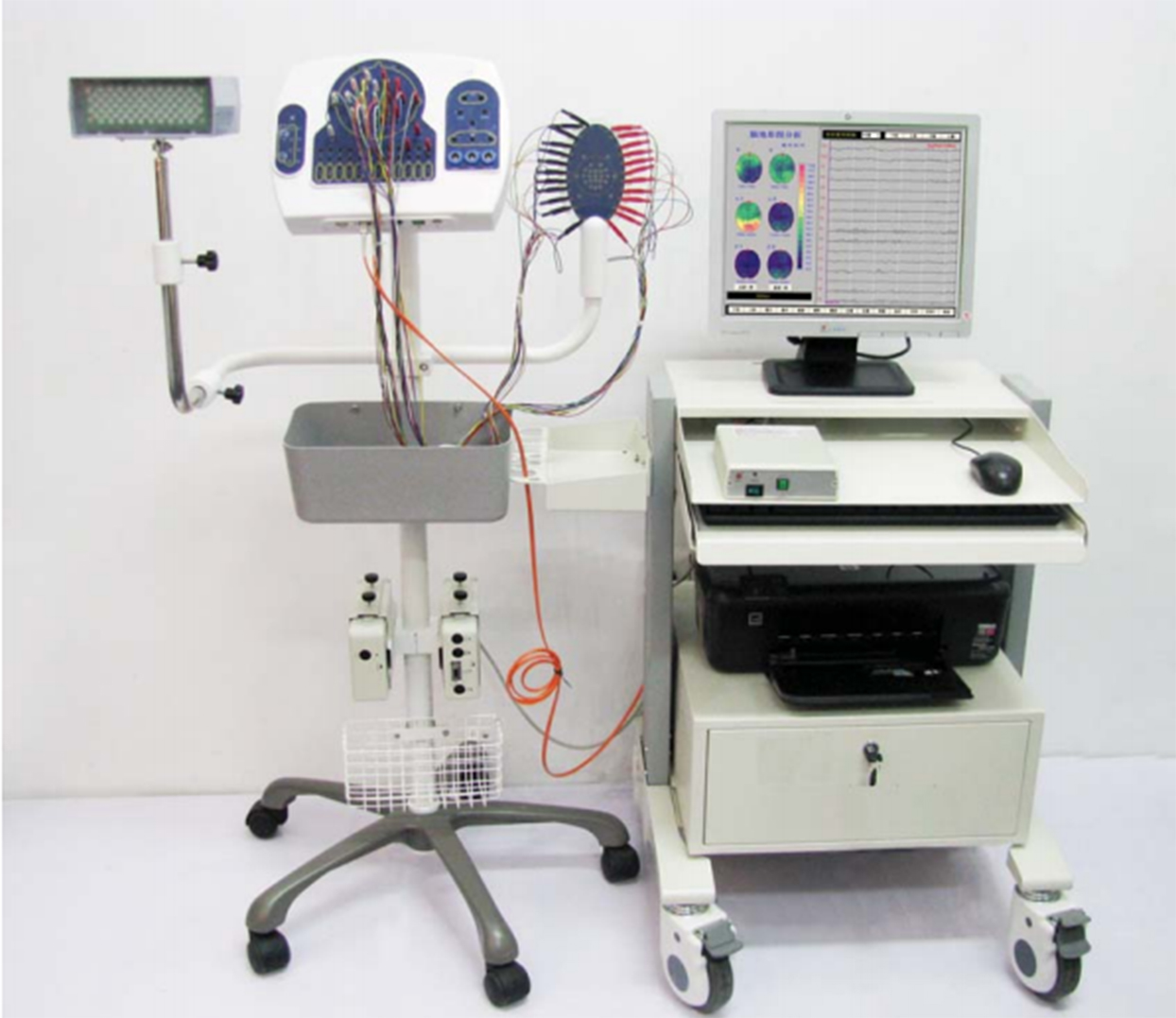

EEG Machine KEEG-A101 is a Professional EEG suitable for all standard applications of routine and long term EEG configurable in various set-ups. High quality real-time EEG signal acquisition and display. Compact, continuous monitoring device with USB connectivity for data transmission. Combined display of configuration chart and channel configuration source simplifies channel editing
Features
All-in-one monitoring electrode cap
Real-time monitoring
Accurate readings and printable waveforms
Configuration: ERP with A/V stimulator & synchronized video monitoring (Optional)
Connectivity : USB
specifications
| Input channel |
32/64/128 channels Monopolar EEG |
| Recording modes |
Real-time |
| Sampling Rate |
128, 256, 512, 1024, 2048, 4096, 8192 Hz |
| Evoke Stimulator |
A/V Simulator/ Video Signal, Current Stimulator |
| A/ Converter |
24 bit |
| Electrodes |
All-in-one monitoring electrode cap |
| Data format |
EDF or TXT format |
| USB Interface |
USB 2.0/ USB 1.1 (HDMI Interface) |
| Hours of operation |
72 hours continuous operation |
| Calibration |
Built-in impedance testing function and automatic calibration |
| Input impedance |
≥10 MOhm |
| Low-pass filter |
1 Hz ~ 120 Hz |
| High-pass filter (Time) |
0.01s - 0.3s |
| CMRR |
≥100 dB |
| Noise |
≤0.5 uVRMS |
| Operative Temperature |
±10 °C ~ +50 °C |
| Operative Humidity |
30% ~ 80% |
| Power supply |
(External) AC 100～240 V/ DC – 19 V (Internal) Rechargeable lithium battery(16.8v) |
| Dimensions |
510 x 450 x 230 mm |
| Weight |
11 Kg |
application
Used in sleep clinics, psychiatric wards and neurology departments to monitor seizure disorders, evaluate patient’s cognitive states, identify lesion sites and study the effect of drugs and psychological treatment.
