Overview

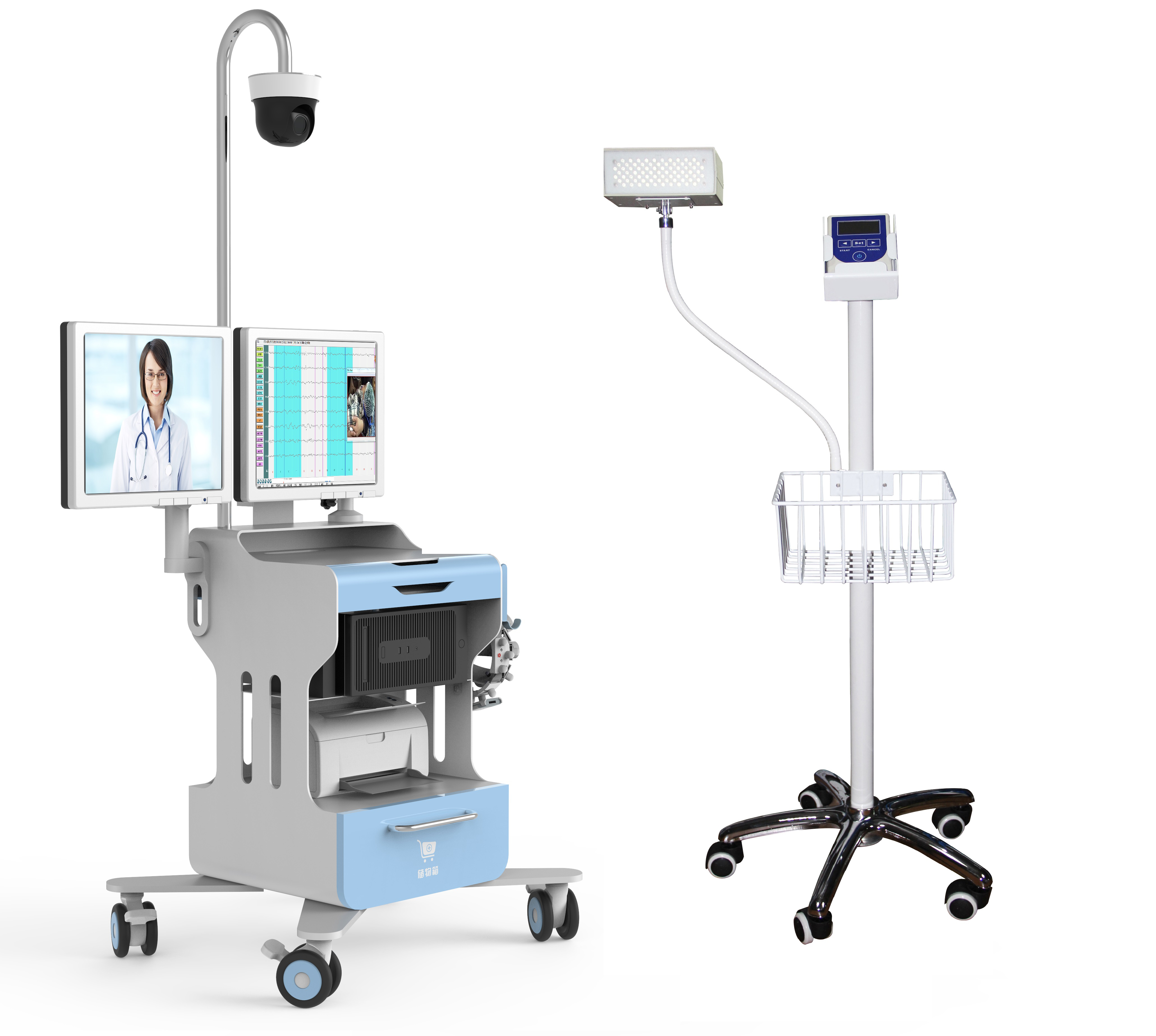

EEG Machine KEEG-A102 is a routine EEG suitable for all standard applications of routine and long term EEG configurable in various set-ups. High quality real-time EEG signal acquisition and display. Compact continuous monitoring device with USB connectivity for data transmission. Combined display of configuration chart and channel configuration source simplifies channel editing. Integrated with different evoke EEG stimulation facilities.
Features
Single-shield electrodes with DIN interface
Expandable channels for PSG recording: EOG, EMG, ECG, SPO2
Real-time as well as long-term monitoring
Sound, light and electricity evoking
ERP data averaging function
Accurate readings and printable waveforms
Connectivity : USB
HD video/Infra-red video recording synchronous with EEG data (optional)
specifications
| Input channel |
(12/24/36/48 Monopolar EEG+12channelsBipolar EEG+12channels PSG) |
| Recording modes |
Real-time |
| Sampling Rate |
128, 256, 512, 1024, 2048, 4096, 8192 Hz |
| A/ Converter |
24 bit |
| Electrodes |
Shielded Single disc electrodes |
| Data format |
EDF or TXT format |
| USB Interface |
USB 2.0/ USB 1.1 (HDMI Interface) |
| Hours of operation |
72 hours continuous operation |
| Calibration |
Built-in impedance testing function and automatic calibration |
| Input impedance |
≥10 MOhm |
| Low-pass filter |
1 Hz ~ 120 Hz |
| High-pass filter (Time) |
0.01s - 0.3s |
| CMRR |
≥100 dB |
| Noise |
≤0.5 uVRMS |
| Internal memory |
Built-in Flash memory card (2GB) |
| Operative Temperature |
±10 °C ~ +50 °C |
| Operative Humidity |
30% ~ 80% |
| Power supply |
(External) AC 100～240 V/ DC – 19 V (Internal) Rechargeable lithium battery(16.8v) |
| Dimensions |
510 x 450 x 230 mm |
| Weight |
11 Kg |
application
Used in sleep clinics, psychiatric wards and neurology departments to monitor seizure disorders, evaluate patient’s cognitive states, identify lesion sites and study the effect of drugs and psychological treatment.
