Overview

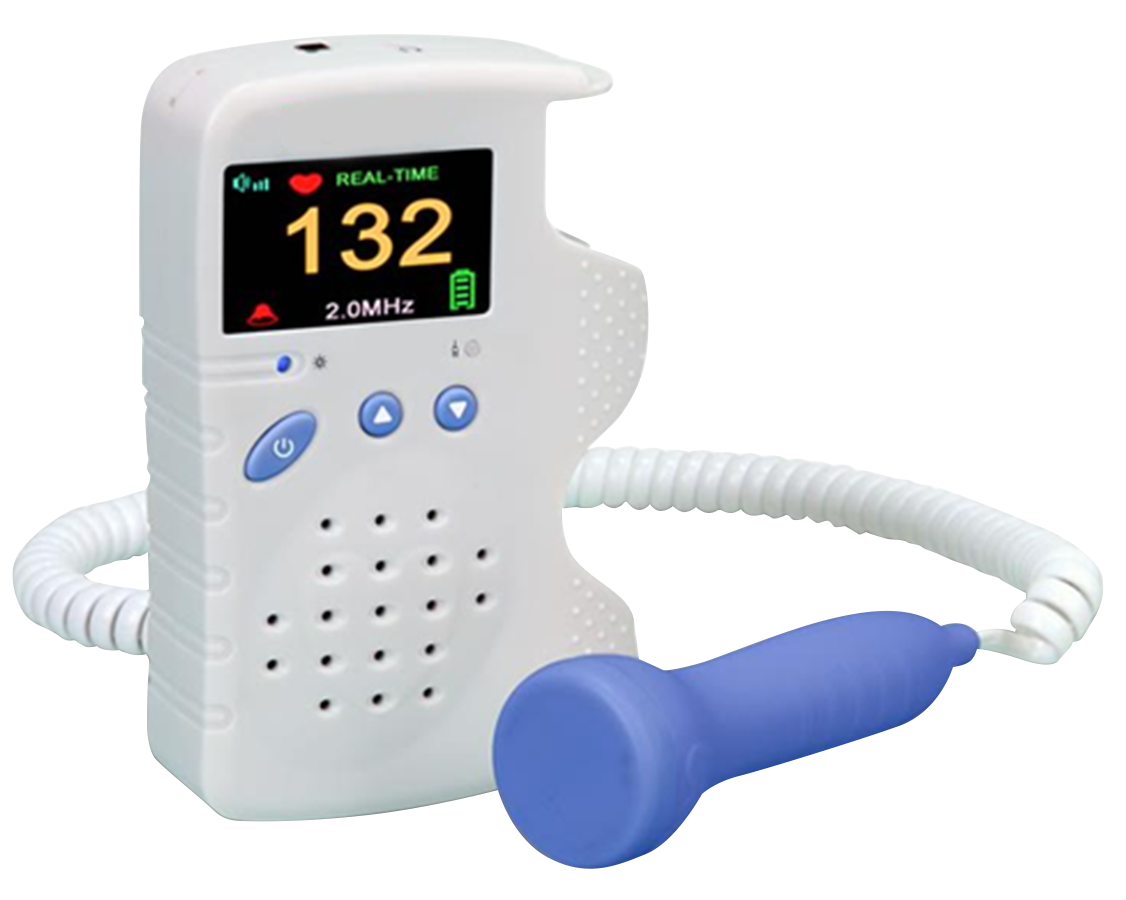

Fetal Doppler KFD-A101 is a hand held ultrasound doppler with heart-rate display and audio output. Doppler probe ensures increased sensitivity with high fidelity. LCD display indicates fetal heart rate with graphs, volume and battery status. Built-in loudspeaker enables clear audibility of fetal heart sounds.
Features
High sensitivity doppler probe
Low power consumption
Compact battery powered operation
Provision for earphones
Backlit colour LCD display
specifications
| Ultrasound frequency |
2 MHz |
||||
| Ultrasound Intensity |
<10mW/cm2 |
||||
| Screen |
Color LCD |
||||
| Display |
FHR and curve |
||||
| FHR Measuring range |
50 ~ 240 bpm |
||||
| Battery |
|
||||
| Power consumption |
<1 W |
||||
| FHR resolution |
1 bpm |
||||
| FHR accuracy |
± 1 bpm |
||||
| Dimension |
135 × 95 × 35 mm |
||||
| Weight |
500 g |
application
Used in gynacology clinics and obstetric department in hospitals to detect and monitor fetal heart rate for routine checkup.
