Overview

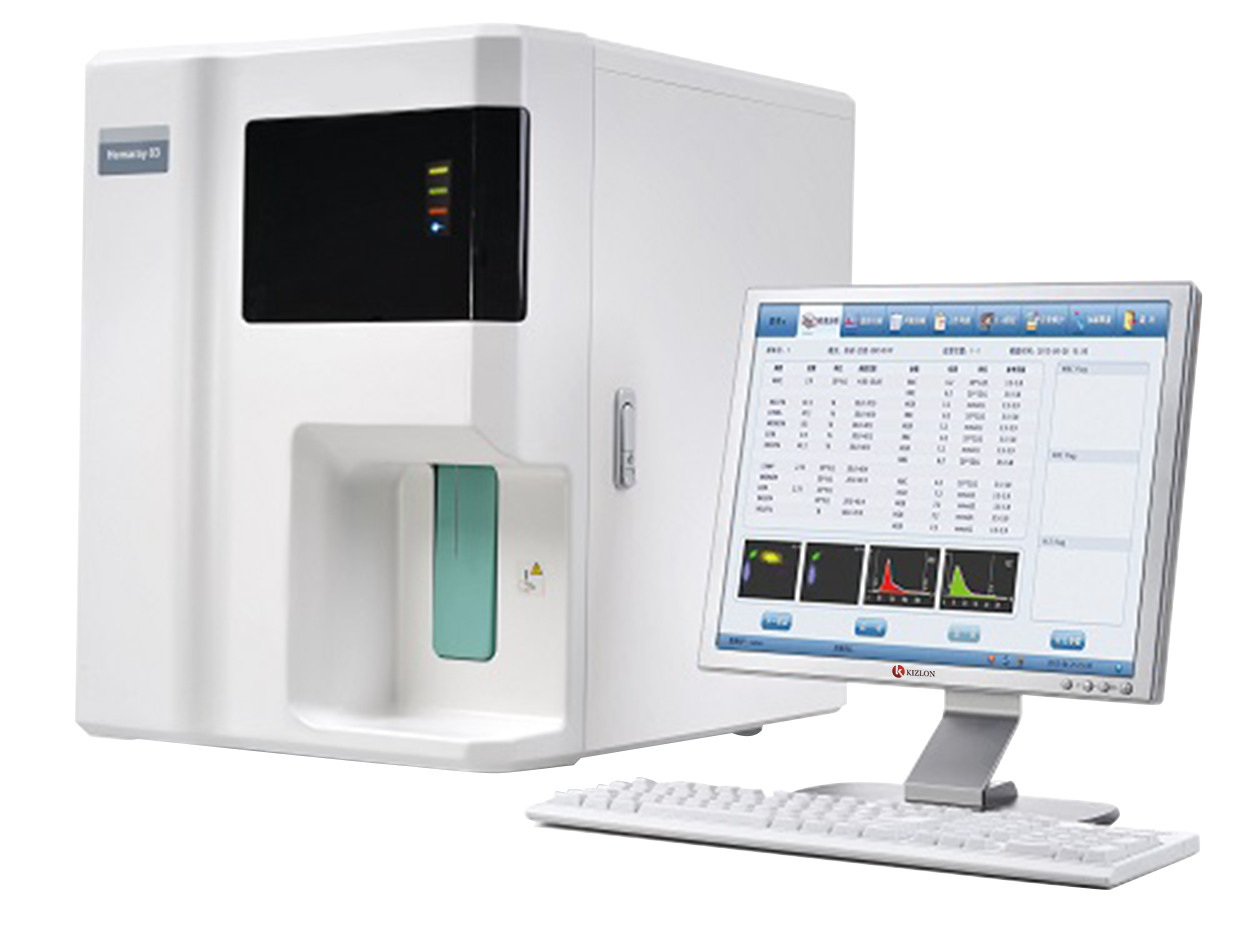

Haematology Analyser KHA-B100 is a fully-automated 28 parameter 5-part WBC differentiation benchtop blood cell counter unit. System adopts 3D topographic WBC mapping to illustrate different properties of WBC. Integrated Ti incubation system ensures constant temperature for accurate 5-part differentiation. Multiple QC protocols and calibration function allows standardized operation. User-oriented software provides large data storage, alarms, LIS interface, flexible data management system with versatile formats.
Features
Flow Cytometry technology
Continuous linear shealth flow technique
Non-toxic reagents
Desktop for display and user interface
Throughput: 60 samples/hr
Performs 28 parameter testing with 2 histogram and 2 scatter gram
Whole-blood and Pre-diluted sample modes
CBC+Diff and CBC test modes
Stores up to 1, 00, 000 patient records
Built-in thermal printer
External printer (Optional)
specifications
| Type |
Fully automated 5-part differential system |
| Throughput |
60 samples/hr |
| Testing Parameters |
WBC, RBC, HGB. HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, PDW, MPV, PCT, P-LCR, NEU#, NEU%, LYM#, LYM%, MON#, MON%, EOS#, EOS%, BAS#, BAS%, ALY#, ALY%, IG#, IG%, 2 histograms, 2 scatter grams. |
| Accuracy (CV %) |
WBC (109/L) : 2.0 % RBC (1012/L) : 1.5 % HGB (g/L) : 1.5 % PLT (109/L) : 4 % |
| Linear Range |
WBC (109/L) : 1.0 – 99.9 RBC (1012/L) : 0.3 – 7.0 HGB (g/L) : 20 – 24 PLT (109/L) : 20 – 999 |
| Sample Mode |
Pre-diluted Whole blood |
| Test Mode |
CBC+5DIFF test CBC test |
| Carryover |
WBC / RBC / HGB <0.5 % PLT<1.0 % |
| Connectivity |
LIS interface with HL7 |
| Printer |
Built-in Thermal printer |
| Storage |
1,00,000 records |
| Operating Temperature |
15 °C to 30 °C |
| Humidity |
30 % - 85 % |
| Power Supply |
AC 110 V – 220 V, 50 / 60 Hz |
| Dimensions |
460 x 570 x 610 mm |
| Weight |
53 Kgs |
application
Used in diagnostic laboratories, pathological diagnostic centers to characterize blood cells, determine their count and cell volume for in-vitro pathological diagnosis of blood samples to meet qualifying performance requirements and standardized results for multiple sample analysis.
