Overview

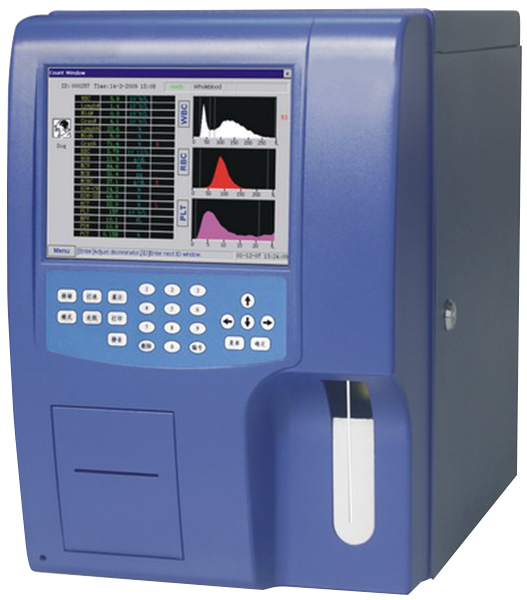

Veterinary Haematology Analyser KHA-C100 is a fully-automated multi-species 19 parameter 3-part WBC differentiation benchtop blood cell counter unit. System features high resolution color LCD display with 12 pre-defined and 4 user-defined programs (optional) for accurate species-specific analysis. Internal software enables auto reverse flush and high voltage burning, clog clearing for blockage removal.
Features
Throughput: 30 samples/hr
Parameters : WBC, GRA#, LYM%, MON%, NEU%, BAS%,EOS%,#LYM,#EOS,#MON,#BAS, RBC, HGB, MCHC, MCH, MCV, PDW, RDW-CV, RDW-SD, HCT, PLT,MPV, P-LCR, PCT and PLCC with 2 Histograms for WBC, RBC and PLT and 4 scatter grams for WBC differential
Performs 19 parameter testing with 3 histogram
Non-toxic cyanide-free method for HGB
Sample modes : Whole blood and Prediluted
12 Pre-defined species-wise programs with 4 programmable settings
Suitable for 7 species including Canine, Feline, Equine, etc
RS232 and USB connectivity for data transfer
Alert alarms as per species selected
Soft touch-key user panel
Stores up to 35,000 patient records
Built-in Thermal printer
External Printer (Optional)
specifications
| Type |
Fully automated 3-part differential system |
| Throughput |
30 samples/hr |
| Principle of Operation |
Impedance, SFT method |
| Accuracy (CV %) |
WBC(109/L) : 2.0 % RBC (1012/L) : 1.5 % HGB (g/L) : 1.5 % MCV (fL) : 0.5 % PLT (109/L) : 4.0 % |
| Sample Mode |
Pre-diluted Whole blood |
| Screen Display |
High resolution large color LCD |
| Resolution |
800 x 600 |
| Sample Volume |
Pre-diluted : 20 µL Whole blood : 9 - 20 µL |
| Reagents |
Non-toxic cyanide-free reagents |
| Connectivity |
RS232, USB |
| Printer |
Built-in Thermal printer |
| Storage |
35,000 records with 3 histograms |
| Operating Temperature |
10 °C to 30 °C |
| Humidity |
0.7 |
| Maintenance |
Auto reverse flush and high voltage burning, clog clearing |
| Power Supply |
AC 100 V – 240 V, 50 / 60 Hz |
| Dimensions |
273 × 420 × 415 mm |
| Weight |
16 Kgs |
application
Used in veterinary diagnostic clinical laboratories and hospitals to characterize blood cells, determine cell count and cell volume for in-vitro species-specific pathological diagnosis of blood samples to meet qualifying performance requirements and standardized results.
