Overview

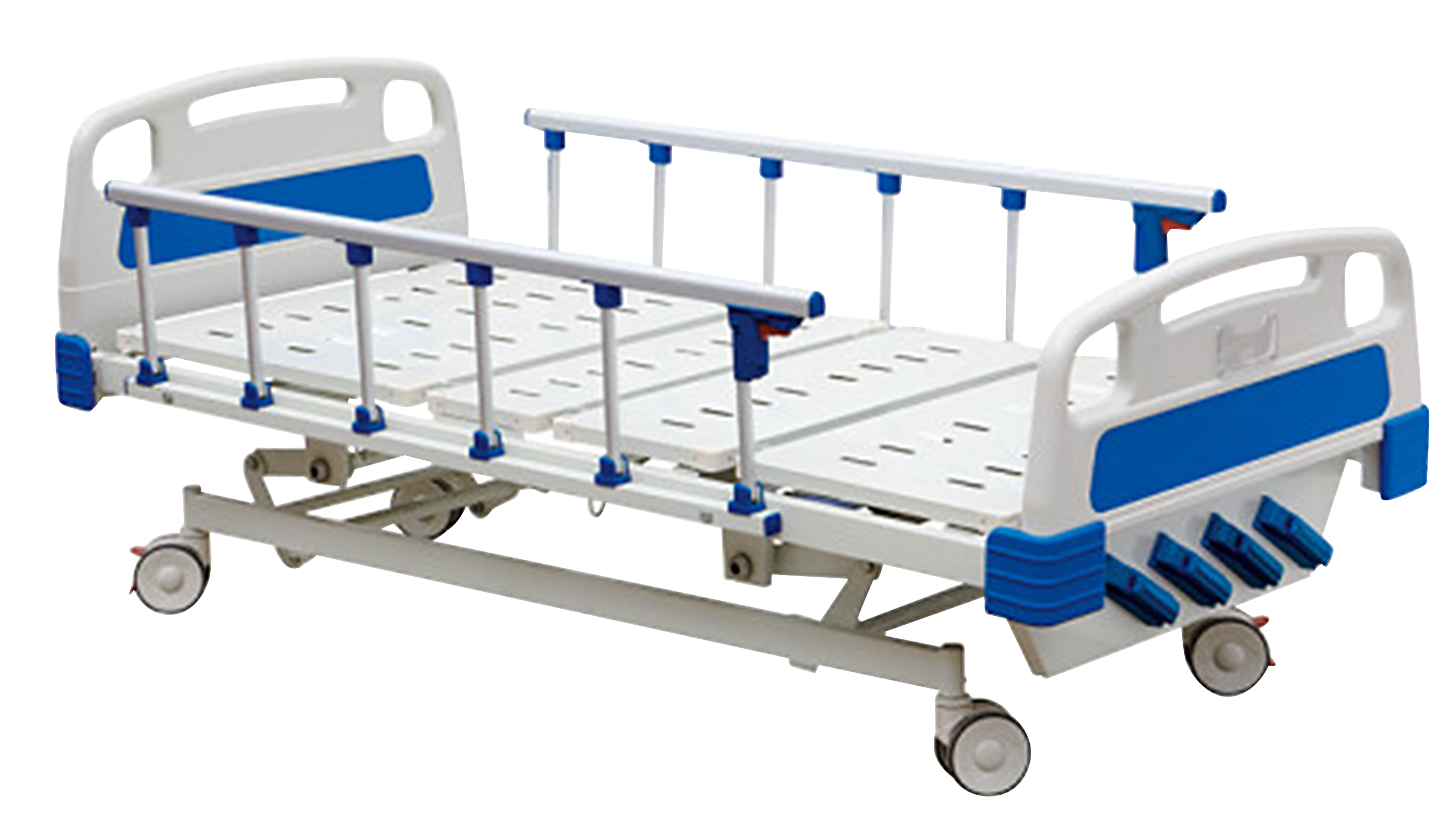

Hospital bed KHB-A201 is a standard mechanical ward bed with aluminium folding side-rails, overload protection hand crank for patient safety. Integrated manual crank tensioning spring mechanism enables patient positioning at various angular bed configurations for knee-rest and back-rest positions. Epoxy coated steel-tube frame work renders superior strength and corrosion resistance.
Features
5 functional bed inclinations (Fowler/PLR variations)
Adopts crank tension mechanism
Over-loading protection system
Steel tube frame with ABS head and foot board
specifications
| Height adjustability |
450 mm to 700 mm |
| Back-rest angle |
0° - 80° (±5°) |
| Knee-rest angle |
0° - 40° (±5°) |
| Trendelenburg angle |
0° - 12° |
| Reverse Trendelenburg angle |
0° - 12° |
| Construction |
Electrostatic powder coated S.S. tube frame with ABS head and foot board |
| Load capacity |
250 Kgs |
| Other components |
Urine hooks, I.V drip, heavy duty castors |
| System functions |
Centrally-controlled brakes |
| Dimensions |
2120 x 970 x 700 mm |
| Weight |
103 Kgs |
application
Used in hospital wards, primary healthcare facilities and nursing homes with specialized functions dedicated for specific wards such as general ward, nursing, orthopedic, burns, ICU, etc. designed to be adjustable at various inclinations, heights for increased comfort and well-being of the patient.
