Overview

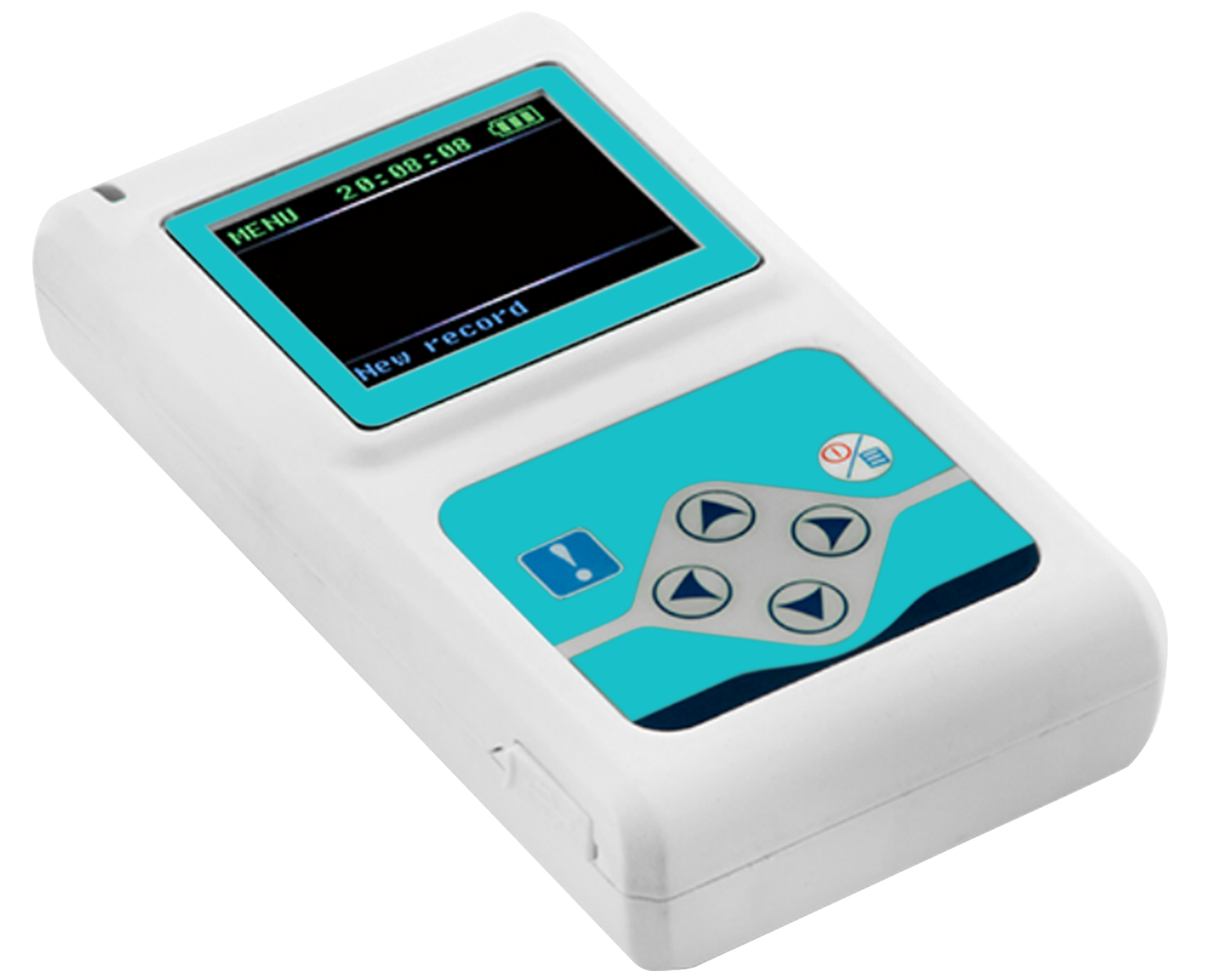

Holter Monitor KHM-A100 is a 24-hour ambulatory ECG recorder designed to record real-time ECG. System is equipped with OLED screen for waveform preview, record review and event marking. Integrated frequency filters allow anti-jamming and aseismic capability for error free waveforms. Data storage up to 2GB using TF card enables original data to be stored without compression. System performs 12-lead synchro-analysis for distortion-free QRS detection.
Features
12-lead synchronous acquisition
Fast review analysis
Accurate and Quick report generation
More than 10 pre-defined modules and user-defined impulse tracking for premature conduction impulses
ECG-analysis function
Predictive arrhythmia analysis module
Predictive pacing analysis module
Flexible channel selection
specifications
| Display |
OLED 160 x 128 dot matrix display |
| Storage |
Built-in TF card storage for up to 2 GB |
| Standard Sensitivity |
10 mm/mV ± 5% |
| Sensitivity Shift |
≤ ± 10% |
| Channel Display |
12 Channel |
| Scan Speed |
25 mm/s ± 5% |
| Pacing Analysis |
Dual chamber pacing, Atrial pacing, Ventricular pacing module Ventricular Pseudofusion and Ventricular asynchronous module |
| Arrhythmia Analysis |
MCSSTM and TMCATM |
| ECG-Analysis |
ST segment analysis , HRT analysis, T-Wave alternation,QTD (QT dispersion) VCG (vector cardiogram), VLP (ventricular late potential) and TVCG (time vector cardiogram) analysis |
| Heart-rate Analysis |
Short range : 5 minutes Long range : 1 hour Continuous : 24 hours |
| Sampling |
Sampling Accuracy : 12 Bit Rate of Sampling : 10 kHz |
| Batteries |
2 AA batteries |
| Interface |
USB 2.0 |
| Scale Voltage |
1mV ± 5% |
| Noise |
≤ 30µV |
| CMRR |
≥ 60 dB |
| Time Constant |
≥ 3.2 s |
| Polarization voltage |
± 300 mV (DC) |
| Dimension |
111 x 60 x 25 mm |
| Weight |
105 g |
application
Used in cardiology center to diagnose and detect symptoms of various heart disease and arrhythmias, determine a patient’s response to drug therapy, function of pacemaker and reveal trends or changes in heart function during normal routine activities.
