Overview

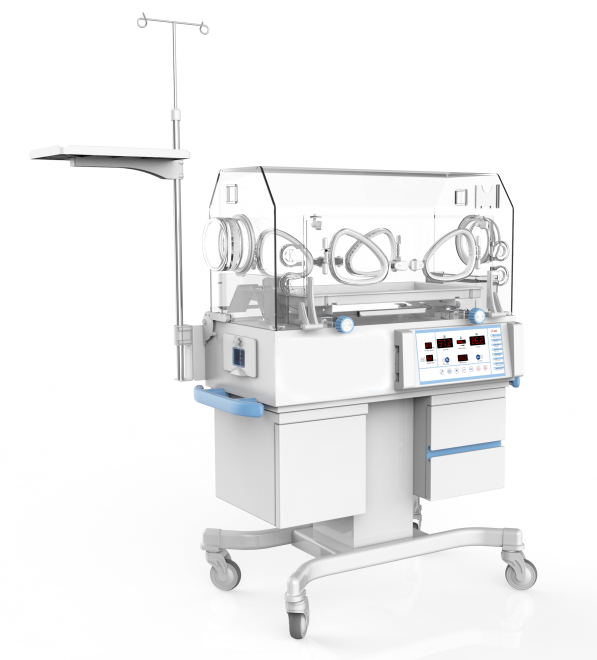

Infant Incubator KII-A100 is a microprocessor-controlled advanced thermoregulation system. Sensor-based air and skin thermo-control allows precise temperature regulation. Servo controlled humidifier monitors humidity to maintain thermo-stable conditions. External knobs adjust inclination of the bassinet platform for smooth positioning of the infant.
Features
Double walled enclosure
Dual sensor temperature control
Humidity control system
Stable X-shaped base design
3-level priority alarms
Vertical height adjustable
Dual storage cabinets
Integrated double phototherapy unit (optional)
Integrated baby weighing bed (optional)
specifications
| Control System |
Air-temp control, Skin-temp control & Humidity control |
| Display |
LED display |
| Air Temperature Control range |
25°C ~ 37°C (Override : 37°C ~ 39°C) |
| Baby Temperature Control range |
25°C ~ 37°C (Override : 37°C ~ 39°C) |
| Humidity Control range |
40 % ~ 80 % RH |
| Humidity Monitoring |
20 % ~ 90 % RH |
| Temperature Variability |
≤ 0.5°C |
| Temperature Uniformity (On Mattress) |
≤ 0.8°C |
| Access ports |
2 ports, 4 windows |
| Temperature Resolution |
0.1°C |
| Temperature Accuracy |
± 0.3°C |
| Humidity Accuracy |
± 5 % RH |
| Hybrid Control |
Ultrasonic and Steam humidifier |
| Water Tank Capacity |
1000 ml |
| Alarms |
Audio-visual indicators. Air-temperature deviation, Over Air temp, Sensor fail, Humidity deviation, Water shortage in tank |
| Mattress Size |
630 × 340 mm |
| Bassinet Tilt |
± 12° continuous tilt |
| Power Supply |
110 V ~ 120 V, 50/60 Hz 220 V ~ 240 V, 50/60 Hz |
| Data Transfer |
RS-232 |
| Dimensions |
1160 x 720 x 1650 mm |
| Weight |
95 Kgs |
application
Used in NICU, neonatal-care wards for critical or premature neonates to maintain a proper temperature and humidity during post-natal weaning period.
