Overview

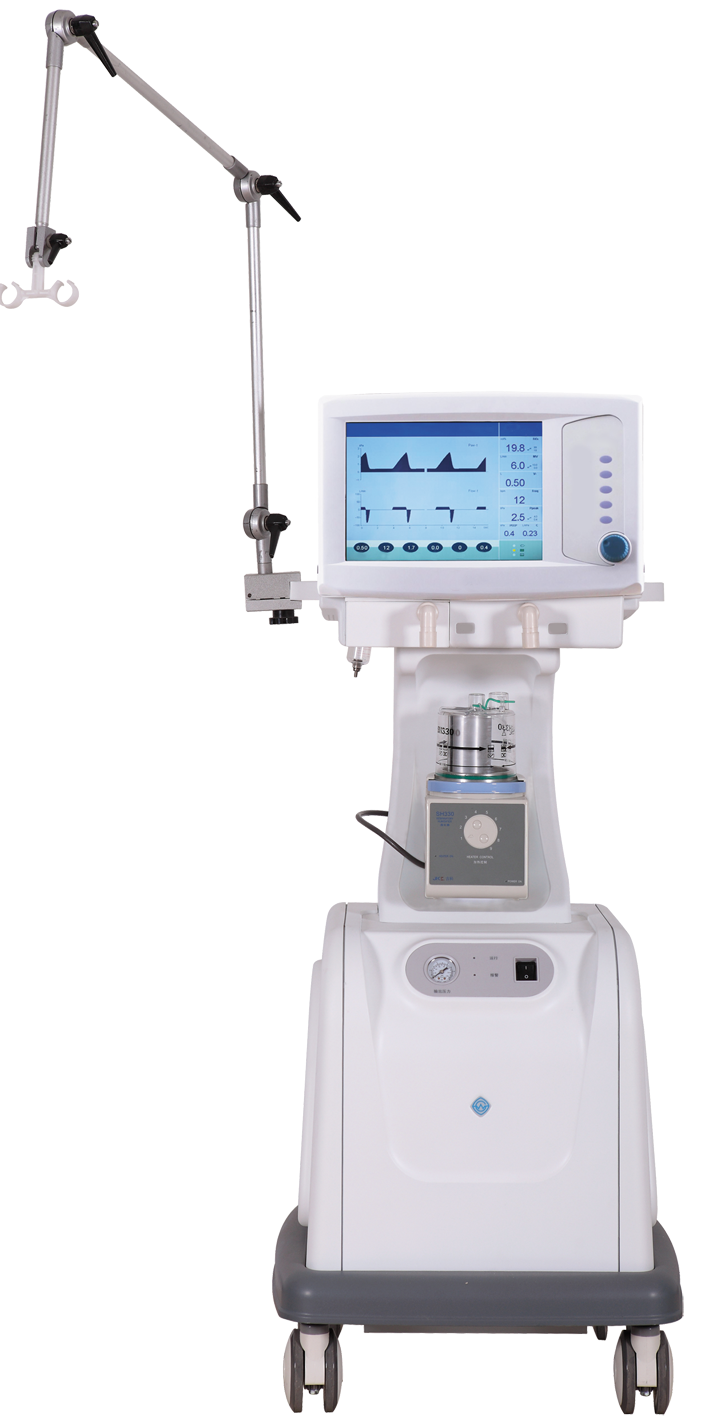

Intensive Care Ventilator KVI- A101 is a respiratory ventilator unit for invasive artificial respiration. Built-in provision for self-testing and calibration. The device is made up of high configuration intelligent control system that allows changes to be made according to user requirements.
Features
Large screen display for parameter visualization and control
Desirable display color schemes
Self-testing and calibration
Air compressor support (Optional)
specifications
| Tidal Volume |
20 ml ~ 500 ml |
| Standard Ventilation Mode |
VCV, SIMV, PSV, PCV, CPAP, Manual, SIGH |
| Application |
Adult/ Pediatric Invasive |
| Pressure Range |
5 mbar ~ 80 mbar |
| Respiration rate range |
1 bpm ~ 99 bpm 1 bpm ~ 40 bpm under SIMV |
| I:E Ratio |
4:1 to 1:8 |
| Oxygen Concentration |
21 % ~ 100 % |
| Pressure trigger Range |
-20 to 20 cmH2O |
| PEEP Type |
Integrated, Electronic Control |
| PEEP Range |
0 to 30 cmH2O |
| Gas Supply |
O2, Air ( 280 kPa ~ 600 kPa ) |
| Alarm |
Visual : No tidal volume, MV, Paw, FiO2 limitation O2, Air failure, AC power failure, low back up Audio: No tidal volume, MV, Paw, FiO2 limitation |
| Display |
12.1” Color LCD |
| Graphic Display |
Waveforms of P-T, F-T, V-T |
| Operating Temperature |
5 °C ~ 40 °C |
| Storage Temperature |
-10 °C to 40 °C |
| Relative Humidity |
≤ 80 % |
| Atmospheric Pressure |
96 kPa ~ 104 kPa |
| Battery |
Lead acid 12V, 4Ah (120 mins run time) |
| Output Pressure |
0.4 mPa ± 0.1 mPa |
| Noise |
≤ 50 dB |
| Power Supply |
AC 220 V ± 10 %, 50 Hz ± 2 % |
| Dimension |
450 x 550 x 1400 mm |
| Weight |
65 kgs |
application
Used in operating rooms, surgical care wards, intensive care unit, and other departments for pulmonary life-support during acute lung injury or respiratory distress which result in inadequate oxygenation or ventilation inability to protect the airway fluids.
