Overview

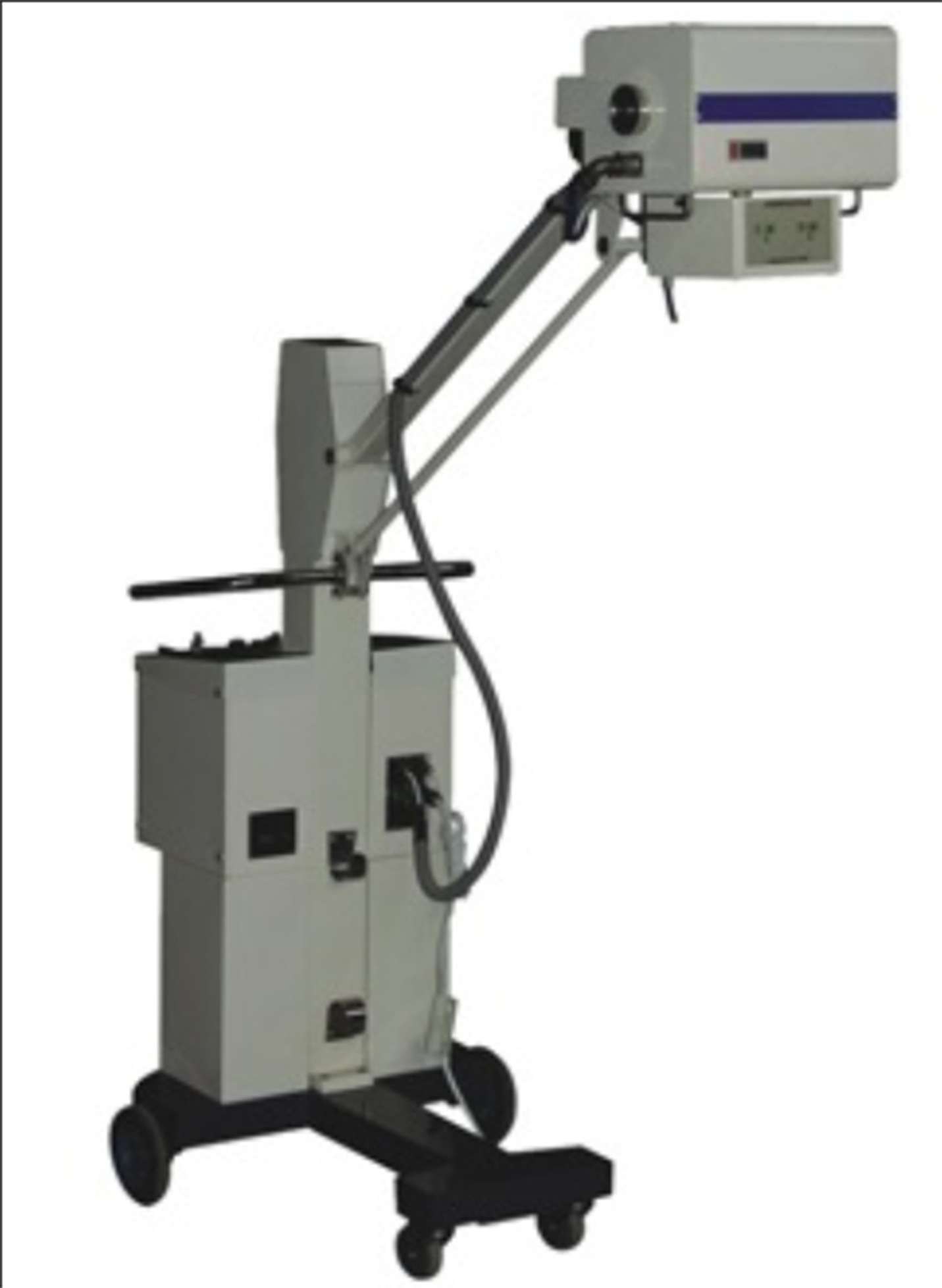

Mobile X-ray machine KMX-A100 is an advanced x-ray imaging modality designed for easy mobility and handling during intra-hospital transport. Regulated voltage control ensures powerful and brief exposure yet stabilized x-ray output consistently. Focused and precise x-ray exposure with adjustable collimators reduces scatter enhancing image quality and contrast. Tube head cantilever allows easy source orientation suitable for different patient positions.
Features
Standard frequency X-ray generator
High imaging quality
Stabilized and short time exposure
Focused x-ray output
Easy and fast positioning
Simplistic operational console
specifications
| Focal Distance |
430 × 430 mm |
| Source Head Range |
550 mm - 1820 mm |
| Exposure Time |
0.08 s - 6.32 s |
| Tube Focus |
2.6 x 2.6 mm |
| Collimator Film (max) |
1000 mm |
| Power Rating |
5 kVA |
| Internal Resistance |
≤1 Ω |
| Current |
Max. 15 A |
| Power Supply |
Voltage : 180 V - 240 V Frequency : 50Hz |
| Dimensions |
1350 × 750 × 1500 mm |
| Weight |
135 Kgs |
application
Used throughout the hospital from in-patient, to NICU, operating room, and emergency room as well as polyclinics to perform projection radiography readily on bedbound or critical patients for convenience.
