Overview

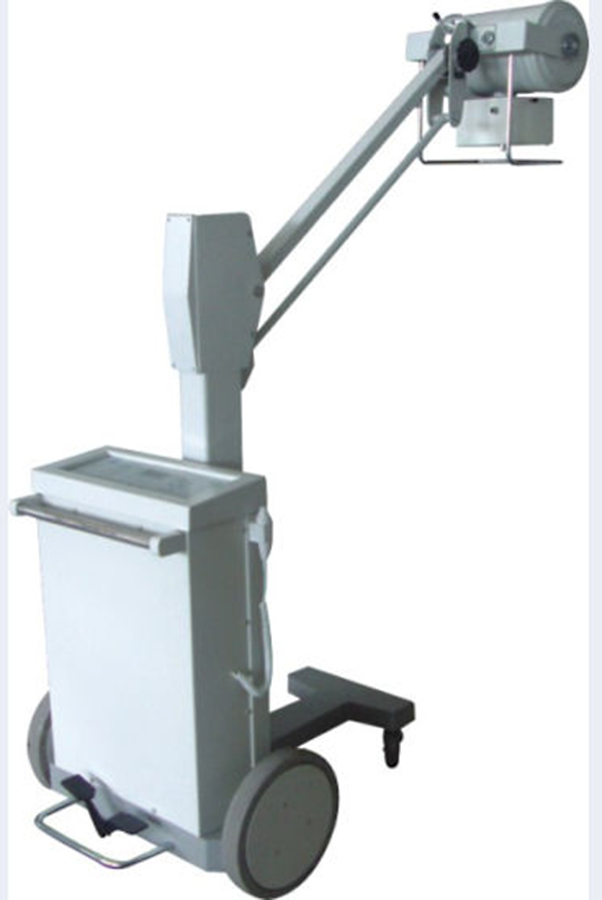

Mobile X-ray machine KMX-A101 is an advanced X-ray imaging modality designed to be highly efficient and portable medical imaging solution for intra-departmental transport. Equipped with single focus full wave rectification for stable and precise-controlled operation. Accurate X-ray beam focusing results in dose-efficient X-ray and enhances image quality. Equipped with high voltage protection circuit for user as well as patient.
Features
Standard frequency X-ray generator
High quality imaging
SCM control technology
8 Pre-defined exposure control
High voltage SCR safety circuit
Cantilever head source structure
specifications
| Focal Distance |
350 x 350 mm |
| Source Head Range |
520 mm - 1880 mm |
| Exposure DC Voltage |
100 kV ; 50 kV - 100 kV |
| Exposure DC Current |
35 A (instant) |
| Exposure Time |
0.08 s - 6.32 s |
| Tube Focus |
4.3 x 4.3 mm |
| Collimator Film (max) |
650 mm |
| Spot-film Tube Current |
150 mA (fixed) |
| Column Angular Range |
±45° |
| Spot Focus |
16 mA, 32mA, 63mA, 100mA |
| Power Supply |
Voltage : 180 V - 240 V Frequency : 50 Hz |
| Dimensions |
1500 x 800 x 1500 mm |
| Weight |
150 Kgs |
application
Used throughout the hospital from in-patient, to NICU, operating room, and emergency room as well as polyclinics to perform projection radiography readily on bedbound or critical patients for convenience.
