Overview

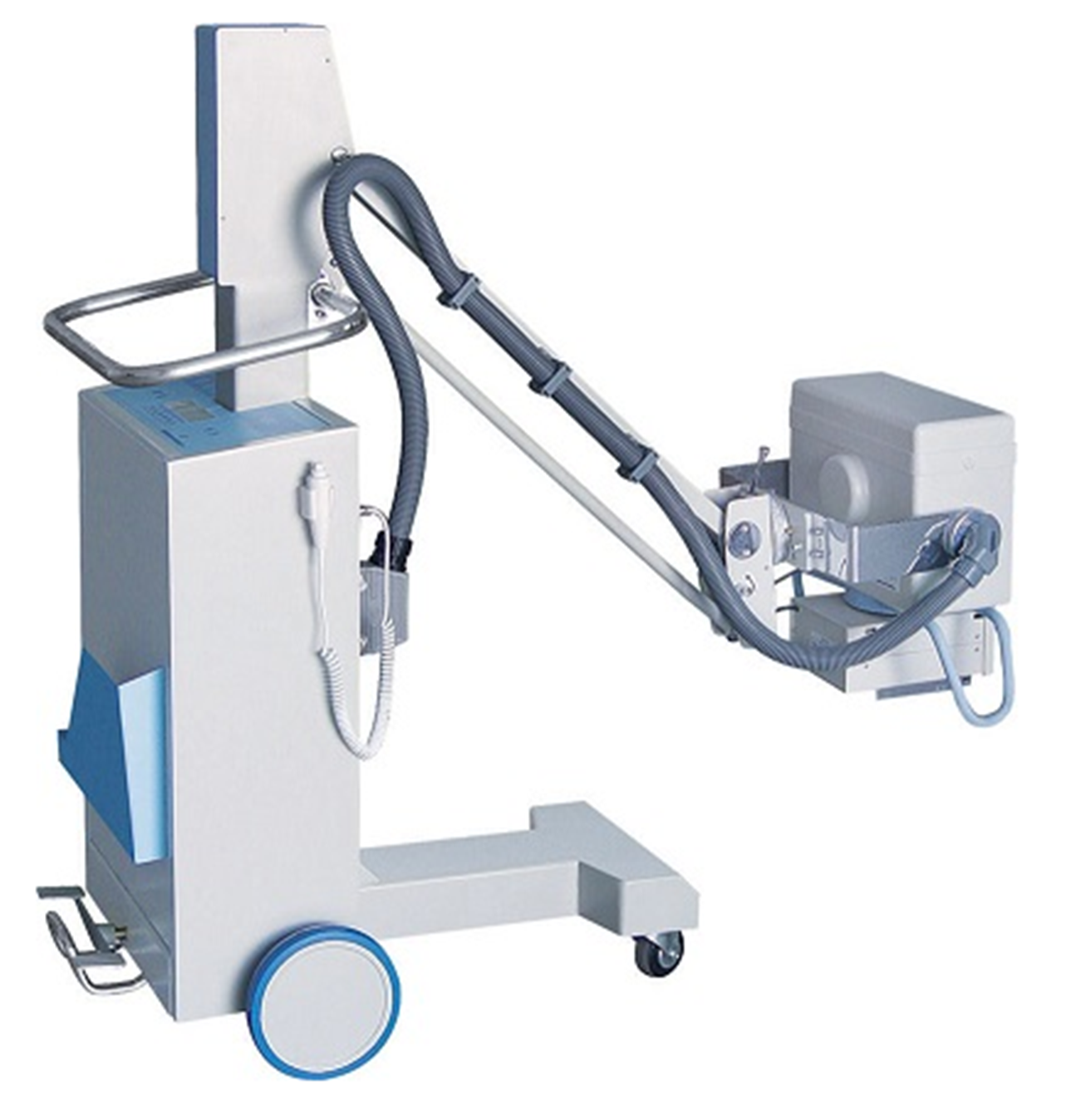

Mobile X-ray machine KMX-B101 is an advanced x-ray imaging modality designed for better mobility and manageability during intra-hospital transit. System is equipped with 50 pre-set exposure programs with automatic back-up memory and multiple protection functions for safer use. Automatic self-test setting and alarming reduces need for maintenance. Proximal as well as remote accessibility controllers make it more versatile to use.
Features
High frequency X-ray generation
High quality X-ray monolight technology
Exposure current: 1.0-180mAs (46 steps)
50 built-in exposure control programs
Accurate X-ray penetration
Flexible and easy source orientation
Symmetrical collimator
Mobile table (optional)
Built-in rechargeable battery
specifications
| Inverter Frequency |
50 kHz |
|||||||||||||||||||||||||||
| Tube Voltage |
40 kV – 120 kV (interval 1 kV) |
|||||||||||||||||||||||||||
| Operational Access |
Wired/Wireless Control |
|||||||||||||||||||||||||||
| Current |
1.0–180 mAs (46 steps) |
|||||||||||||||||||||||||||
| Power Rating |
5 kVA |
|||||||||||||||||||||||||||
| Internal Resistance |
≤ 1 Ω |
|||||||||||||||||||||||||||
| Exposure Parameters |
|
|||||||||||||||||||||||||||
| Power Supply |
Voltage : 220 V ±10% Frequency : 50Hz |
|||||||||||||||||||||||||||
| Built–in Battery |
Rechargeable Lithium |
|||||||||||||||||||||||||||
| Dimensions |
1500 x 750 x 1850 mm |
|||||||||||||||||||||||||||
| Weight |
355 Kgs |
application
Used throughout the hospital from in-patient, to NICU, operating room, and emergency room as well as polyclinics to perform projection radiography readily on bedbound or critical patients for convenience.
