Overview

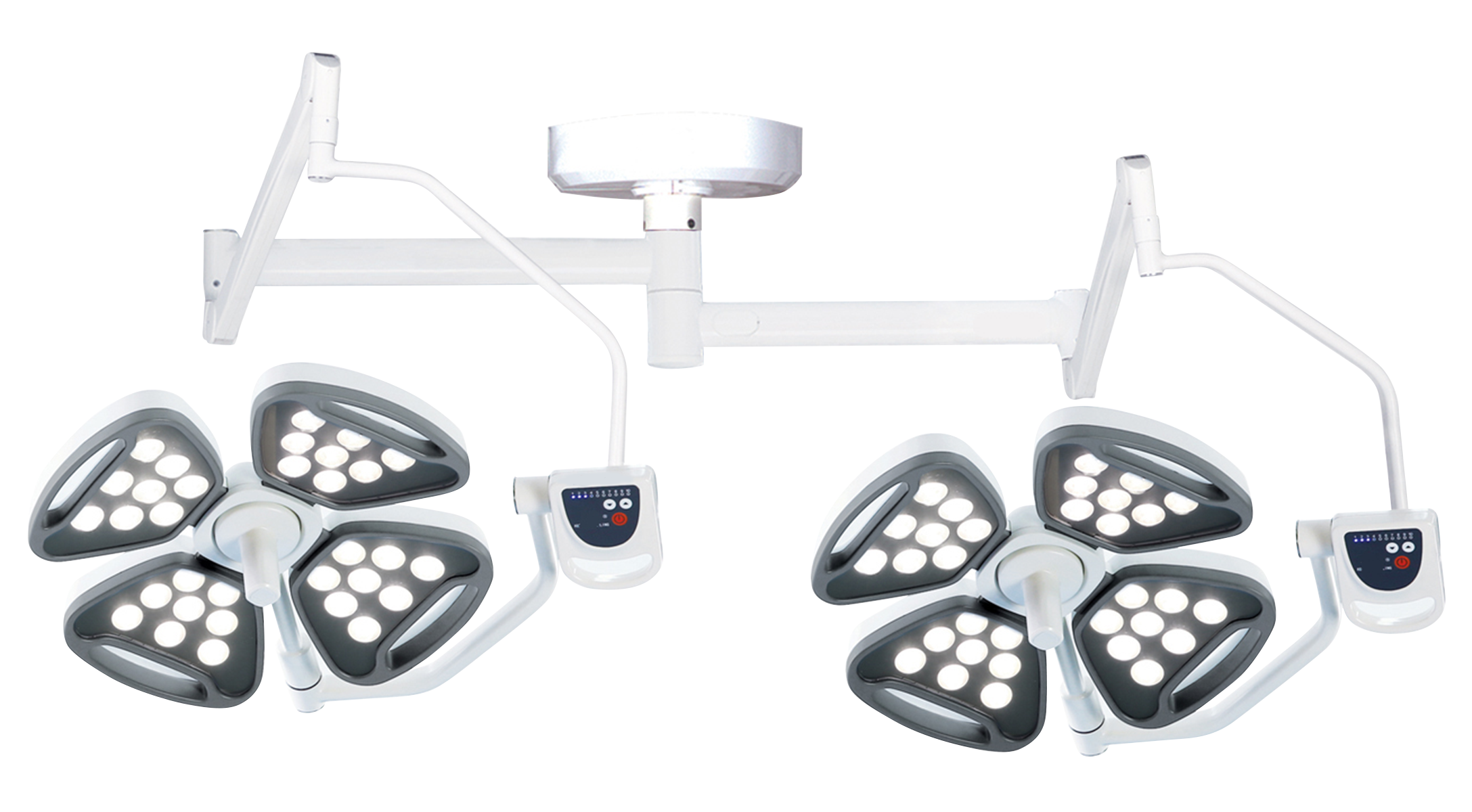

KOL-A401 is shadow less operating light featuring LED cold light with ultrathin optical lenses suitable for surgical procedures. Digital step less regulated LED brightness and handle is adjustable to alter the light field size. Wall mounted with minimum height for installation of 2800 mm to 3200 mm.
Features
Light source : LED cold light
Removable handle sheath
Long life LED lamp
Adapts switch power supply control voltage
Spring arm for lamp head adjustment
specifications
| Light head |
Combined type |
| Illumination capacity |
40000 lux ⁓ 100000 lux / |
| Combined light depth of illumination |
150 mm |
| Power input |
180 VA |
| Light field diameter |
100 mm to 280 mm |
| No. of LED bulbs |
32 / 32 |
| Optional Color temperature |
(3500 / 4000 / 4500) ±500K |
| Diameter of spot D50 |
110 ± 35 mm |
| D10 |
180 ± 40 mm |
| Minimum height of installation |
280 to 320 mm |
| Heat to light ratio |
< 6 |
| Operating distance |
700 ⁓ 1400 mm |
| Average bulb life |
50000hr. |
| Power supply |
100 / 240 V |
| Color rendering index (Ra) |
100 ≥ Ra ≥ 85 |
application
Used in hospitals as medical exam light, operating room lights.
