Overview

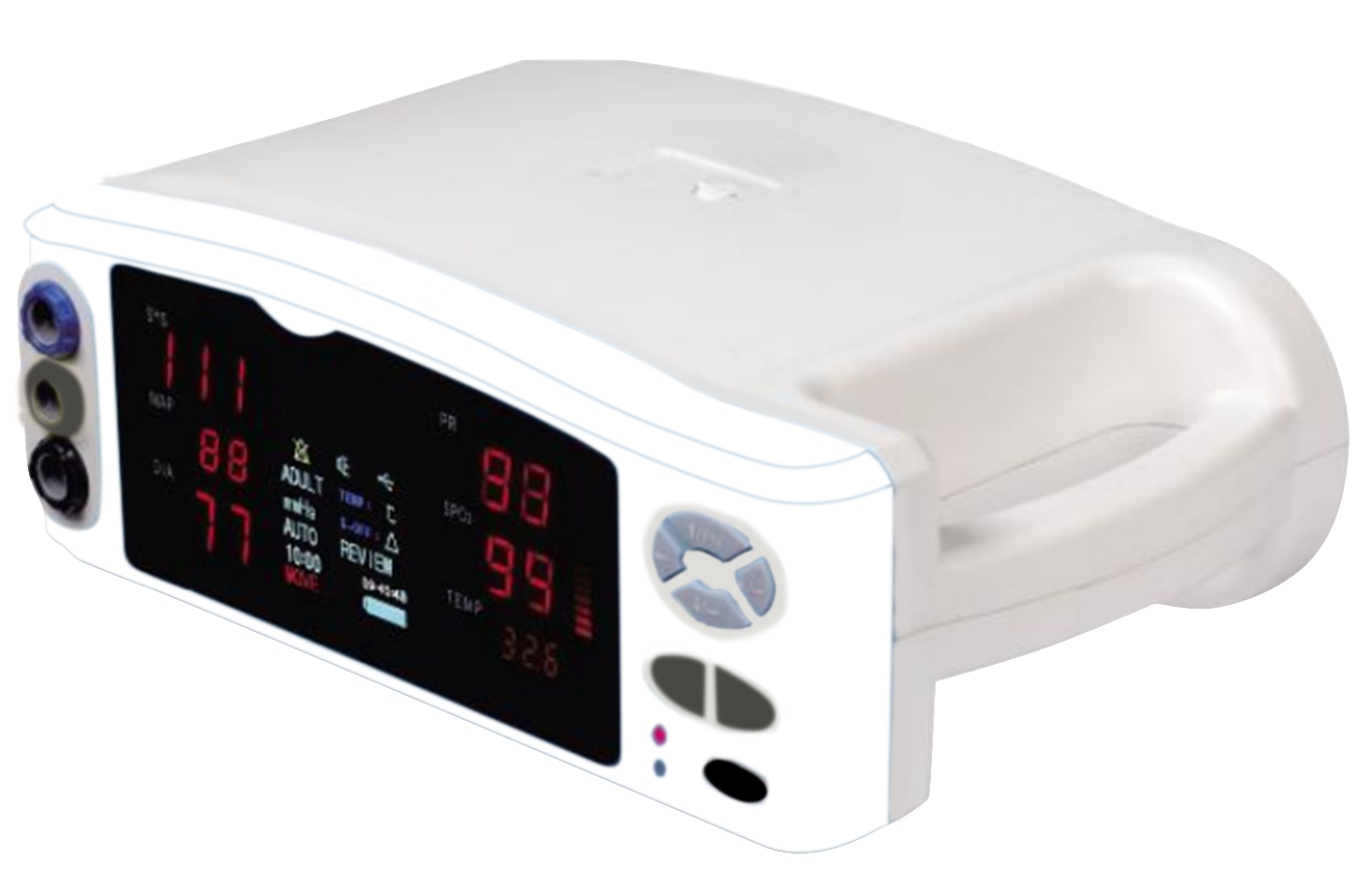

Vital Sign Monitor KPM-A100 is a four parameter compact spot check device with graphic trends to illustrate patient status. Smooth crevice-free exterior with integrated handle aids portable usage reducing cross infection. Advanced software enables instant data download and tele-monitoring.
Features
2.8-inch screen display
Automatic shut-down and stand-by
Trend review up to 3888 groups
Audio-visual alarm system
Tele monitoring and USB connectivity
Battery status indicator
specifications
| Vital Parameters |
|
||||||
| Display |
240 x 320 dot matrix colour TFT |
||||||
| NIBP Measurement range |
Adult: 30-255 mmHg Paediatric: 30-160 mmHg |
||||||
| NIBP Mode |
Auto, Manual, STAT |
||||||
| NIBP Parameters |
SYS, DIA, MAP |
||||||
| NIBP interval |
Auto mode: 1, 2 , 3, 5, 10, 15, 20, 25, 30, 45, 60 mins STAT mode: 5 mins |
||||||
| Resolution |
1 mmHg |
||||||
| NIBP Over-pressure protection |
Adult: 300 mmHg Pediatric: 22 mmHg |
||||||
| SpO2 Measurement range |
0 - 100% |
||||||
| SpO2 Accuracy |
±2% (90-100)%, ±3% (70-89)%, <70% (unspecified) |
||||||
| SpO2 Resolution |
0.01 |
||||||
| PR Measurement range |
30 bpm - 250 bpm |
||||||
| PR Accuracy |
±1 bpm |
||||||
| PR Resolution |
1bpm |
||||||
| Temp Probe |
Body sensitive temperature sensor |
||||||
| Temp Measurement range |
0⁰C to 50⁰C |
||||||
| Temp Accuracy |
± 0.1⁰C |
||||||
| Temp Resolution |
0.1⁰C |
||||||
| Graphic LCD size |
44 x 59 mm |
||||||
| Audio-visual Alarms |
Sensor-off alarm, Measurement out of user-defined limits |
||||||
| Data Transmission |
USB-based transmission to PC Internet-based tele monitoring |
||||||
| Operational Temperature |
0⁰C to 45⁰C |
||||||
| Relative Humidity |
15% to 95% |
||||||
| Pressure |
86 kPa – 106 kPa |
||||||
| Power Supply |
Input power: AC 100-240V, 50-60Hz, 0.7A Output power: 5V,2.5A |
||||||
| Battery |
2.8 A built-in rechargeable Li-ion battery Run Time : 5 hours Charging Time : 8 hours |
application
Used in OPD, diagnostic centers, emergency wards, first-aid and rescue ambulatory care intended for spot checking, non-invasive monitoring or recording of vital body parameters.
