Overview

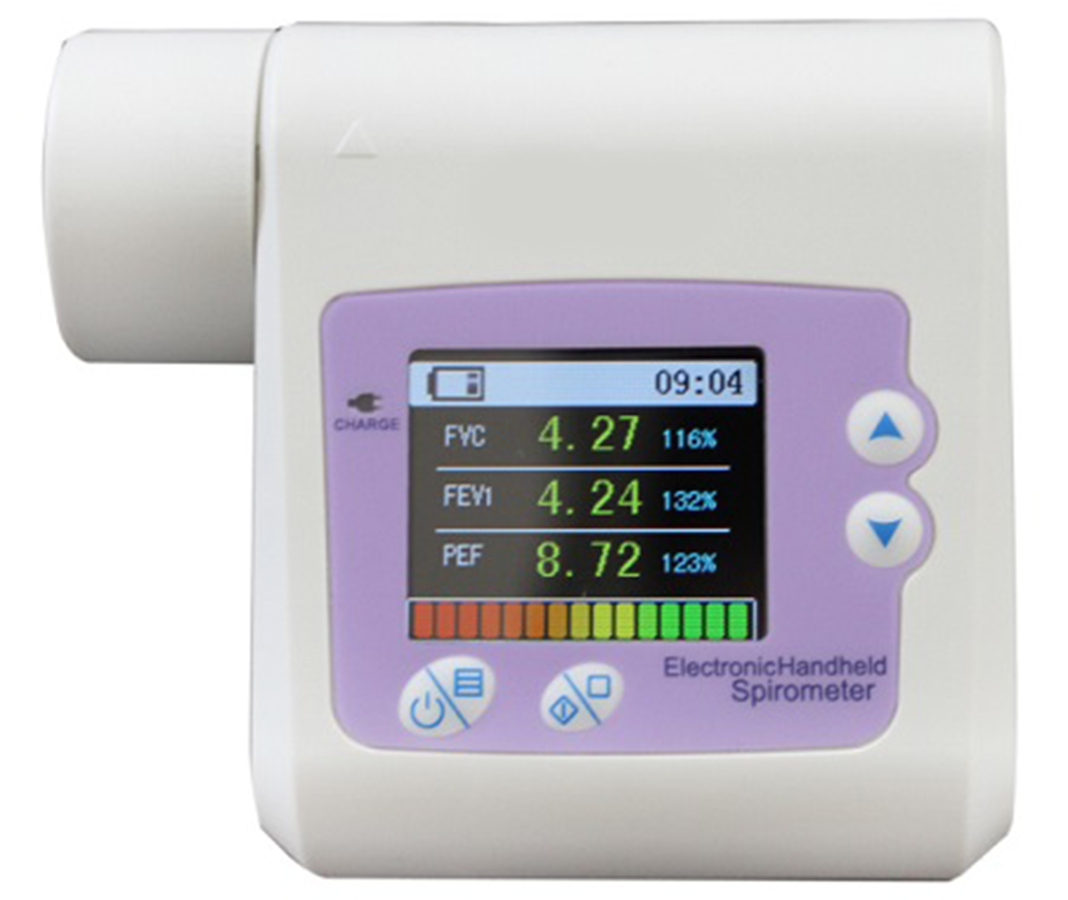

KSPM-A100 is a hand held unit which can be used in two different ways (connectible to PC through USB or the unit itself as a desktop) to meet user’s requirements. It features a large TFT screen to display measured FVC, FEV and PEF values. It displays volume and flow rate charts to support diagnosis. Automated unit shut down in case of no user operation.
Features
Portable ultra-thin model
TFT screen displays clear test result
Respondant’s current condition is displayed by red, yellow and green bar
Repeated measurement of pre analyzed data
Provision of memorizing data
Connectable to PC through USB cable
Rechargeable lithium battery
specifications
| Flow range |
1 L/s ⁓ 16 L/s |
| Volume range |
10 L |
| Flow accuracy |
± 10 % |
| Volume Accuracy |
± 3 % |
| Trend |
Flow rate – Volume |
| Measure mode |
Infrared |
| Measures |
FVC - Forced Vital Capacity |
| Operating environment |
Temperature: +10 °C ~ +40 °C |
| Storage environment |
Temperature: -40 °C ~ +55 °C |
| Working Current |
60 mA |
| Battery |
DC 3.7 V ; 820 mAh |
| Dimension |
97 × 89 × 36 mm |
| Weight |
150 g |
application
Used to check lung conditions to diagnose chronic respiratory diseases. Applicable for routine analysis in hospital, clinics.
