Overview

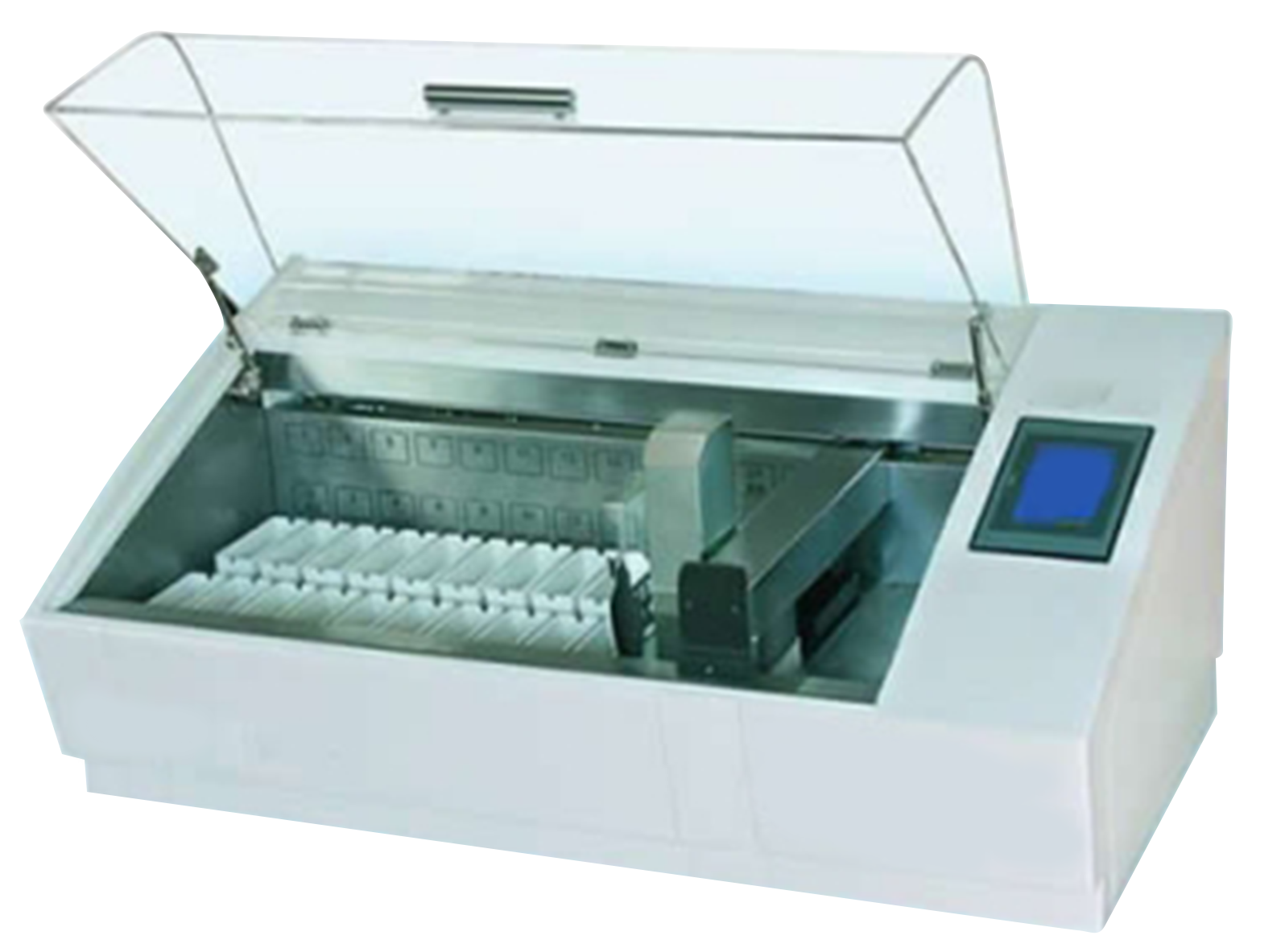

KSS-A101 is a PLC controlled computerized stainer unit ensuring easy operation with a specimen slide throughput of 200 slides per hour. It features 26 stations (1 to 17 stations for reagent containers and 19, 21, 23 stations are water washing containers).Integrated with stepper motor and synchronous belt drive ensuring accuracy and balanced running of the unit.
Features
PLC control computerized system
High throughput of specimen slices
Automatic reset function
Storage for five programs
Optional battery backup for power failure
specifications
| Reagent Containers |
600 ml |
| Specimen slide throughput |
200 specimen slides per hour |
| Loading capacity |
3 slides rack |
| Number of stations |
26 |
| Slide Rack Capacity |
30 Specimen Slide |
| Distribution of station |
0-unloading staining rack 1 to 17- reagent container 18,20,22-waiting container 19,21,23-water washing container 24-loading staining rack 25-oven |
| Number of reagent stations |
18 |
| Number of Wash Stations |
3 |
| Number of Wait Stations |
3 |
| Oven Chamber Temperature |
From ambient temperature to 85 °C |
| Load/unload Stations |
1 each |
| Incubation Time Setting |
0 secs to 9999 secs |
| Permanent Memory Capacity |
5 programs, up to 24 program steps each |
| Operation Temperature Range |
15 °C to 35 °C |
| Relative Humidity |
≤ 90 % (+ 25 °C) |
| Voltage |
AC 220 V, 50 Hz AC 110 V 60 Hz |
| Power |
300 W |
| Dimension (W x D x H) |
1200 mm × 500 mm × 600 mm |
| Weight |
110 kgs |
application
Used in hospitals, histology, pathology, scientific laboratories, research institutes for research, analysis, in-situ hybridization, PCR automation, etc.
