Overview

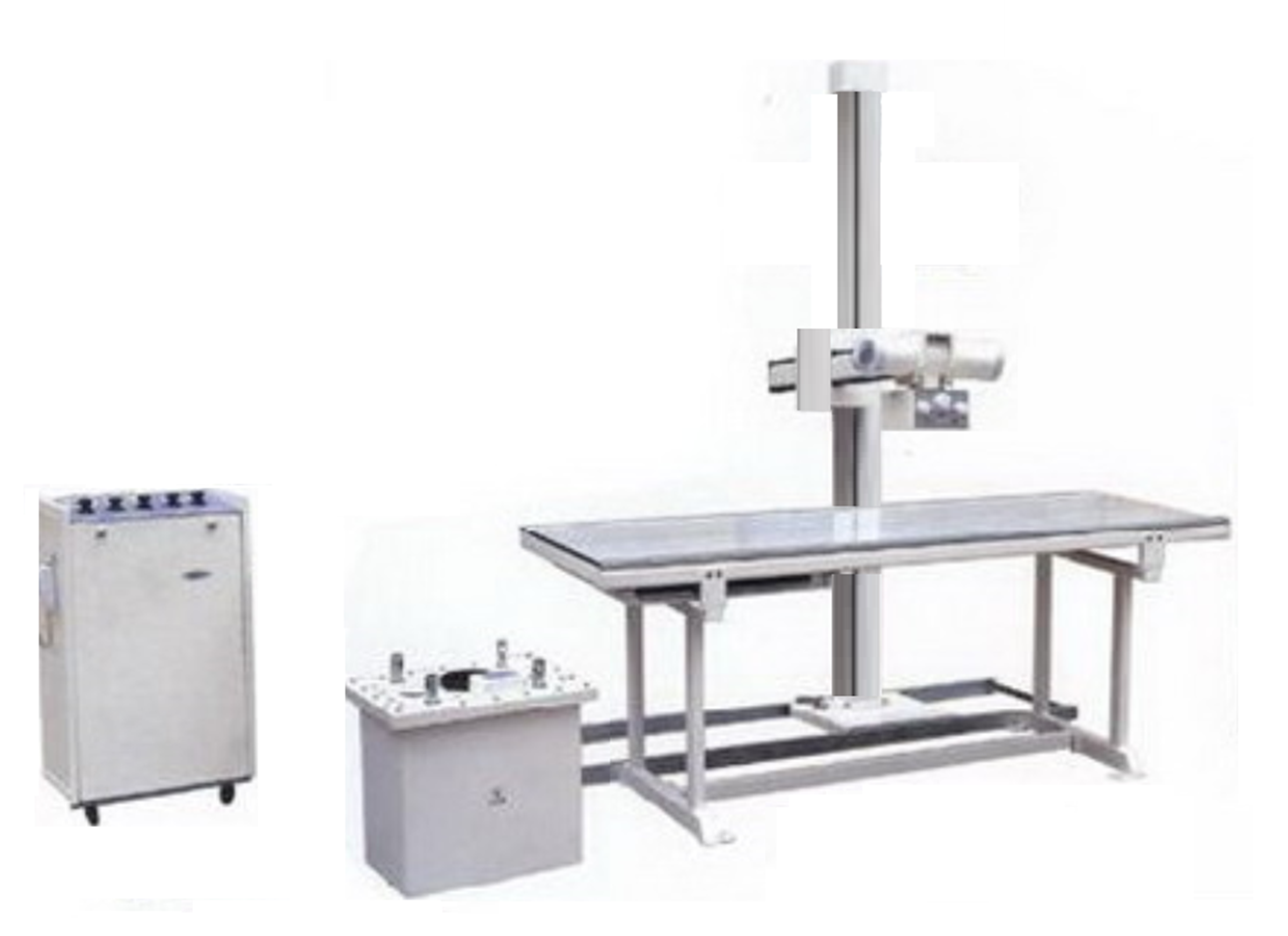

Stationary X-Ray Machine KSX-A100 series is a traditional X-ray imaging modality equipped with single focus X-ray source and full wave rectification high-voltage generator for reliable performance. The high voltage X-ray generator has an independent configuration for electrical isolation subsequently increasing safety and stability. X-ray tube incorporates space charge compensator and pressure regulator to ensure the sharp images and low X-ray dosage on every output.
Features
Standard Frequency X-Ray Generator
7 kVA Generator Capacity
Vibrating Ray-Filter Radiographic Flatbed
High Quality Imaging
Accurate Timer Controlled Exposure
Suitable for Radiography as well as Fluoroscopy
Step Less Adjustability of Controls
specifications
| Exposure Voltage |
50 kV ~ 90 kV |
| Exposure Current |
Small focus: 25 mA Big focus: (50, 75, 100 and 125) mA |
| Max. Output Voltage |
90 kV |
| Max. Output Current |
100 mA |
| Exposure Time |
0.04 s ~ 6.3 s, 23 grades |
| Supply Voltage |
Single Phase ; 380 V/220 V |
| Supply Frequency |
50 Hz |
| Power Capacity |
10 kVA |
| Inner Resistance |
380 V: 2° 220 V: 0.6° |
| Glide Up/Down |
720 mm – 1800 mm |
| HV Generator |
7 kVA |
| X-Ray Focus |
Big: 4.3 mm Small: 1.8 mm |
| Bed Dimensions |
1960 × 660 × 700 mm |
| Cassette Size |
356 × 432 mm or (14" ×17") |
application
Used in hospital radiology departments, orthopedic and diagnostic imaging centers to perform projection radiography.
