Overview

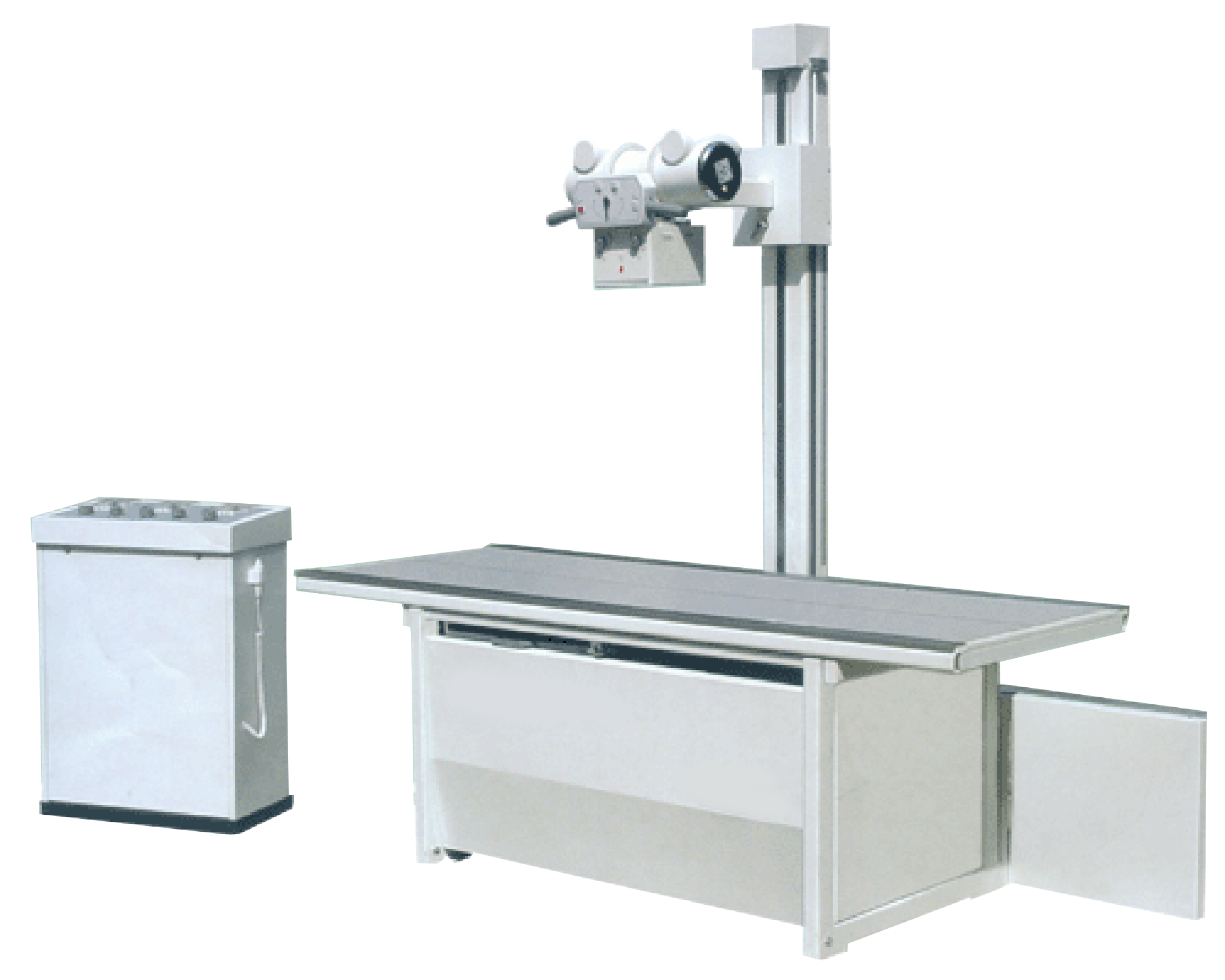

Stationary X-Ray Machine KSX-A200 is a traditional X-ray imaging modality equipped with single focus X-ray source and full wave rectification high-voltage generator for reliable performance. The high voltage X-ray generator has an independent configuration for electrical isolation subsequently increasing safety and stability. X-ray tube incorporates space charge compensator and pressure regulator to ensure the sharp images and low X-ray dosage on every output.
Features
Standard Frequency X-Ray Generator
High Quality Imaging
Accurate Timer Controlled Exposure
Suitable for Radiography as well as Fluoroscopy
Step Less Adjustability of Controls
120KV Generator Capacity
Vibrating Ray-Filter Radiographic Flatbed
specifications
| Exposure Voltage |
50 kV ~ 100 kV |
| Exposure Current |
Small focus: 50 mA Big focus: (50, 100, 150 and 200) mA |
| Max. Output Voltage |
100 kV |
| Max. Output Current |
200 mA (instant) 5 mA (running) |
| Exposure Time |
0.04 s ~ 6.3 s, 23 grades |
| Supply Voltage |
Adjustable 380 V: 340 V—420 V 220 V: 195 V—250 V |
| Supply Frequency |
50 Hz |
| Glide Up/Down |
> 400 mm |
| X-Ray Focus |
Big: 2x2 mm Small: 1x1 mm |
application
Used in hospital radiology departments, orthopedic and diagnostic imaging centers to perform projection radiography.
