Overview

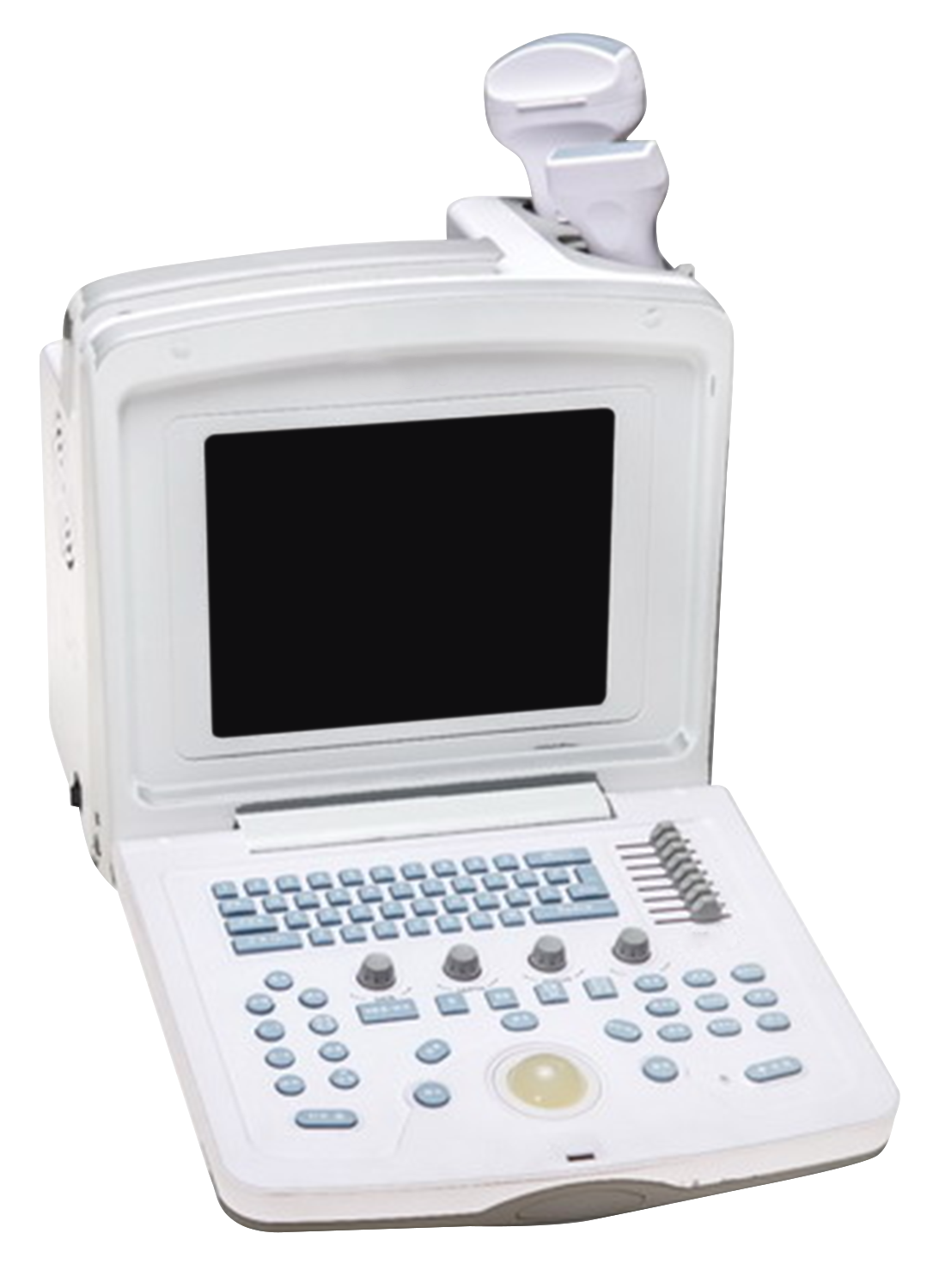

Portable Ultrasound machine KUS-A201 is a compact B/W digital ultrasound imaging modality equipped with 10” LCD screen, 8 pseudo-colour imaging functions and core features including digital beam-forming, ultrasonic frame-forming, real-time dynamic aperture control, advanced frequency scan, dynamic focusing and gamma correction to ensure efficient measuring and spot-analysis of the body area under study.
Features
High resolution vivid colour screen
Pseudo-colour imaging
Digital beam-forming technology
Real-time depth adjustability
Image management system
Patient file management and transfer system
specifications
| Display Size |
10-inch screen |
| Display Depth |
≥ 250 mm |
| Ultrasound Modes |
B, B+B, B+M, B+2M, M, 4B |
| TGC |
Total gain, 8 segment TGC |
| Depth Adjustability |
16 level of real-time depth adjustments |
| Probe Scan Methods |
Convex, Linear, Micro-convex |
| Pseudo-colour Imaging |
8 pseudo-colour options |
| Cine-loop |
≥ 500 frames |
| Frame Storage |
≥ 64 frames, Supports Disk Storage |
| Body Marks |
40 types |
| Imaging Mode |
2D ultrasound imaging |
| Measurement |
Distance, Circumference, Area and Volume |
| Cardiac Measurement |
LV/VF, AV, MV, PV, TV, HR |
| Obstetric Measurement |
BDP, FL, AC, HC, CRL, AD, GS, G.A, LMP, EDD, FW |
| Image Processing |
Pseudo-color, Dynamic range, THI, Image Smoothing, Image Sharpening, Gamma Correction and Histogram based Enhancement. |
| Output Report |
4 Reporting Media formats |
| Zoom |
4 step zoom-in functionality |
| Output Interface |
PAL-D Video, RS-232, USB 2.0 |
| Dimensions |
460 x 360 x 430 mm |
| Weight |
9 Kgs |
application
Used in examination rooms, consultation clinics, primary healthcare centers and rescue ambulance or outdoor examinations for point of care ultrasonography imaging for symptomatic examination and diagnosis at patient’s bedside.
