Overview

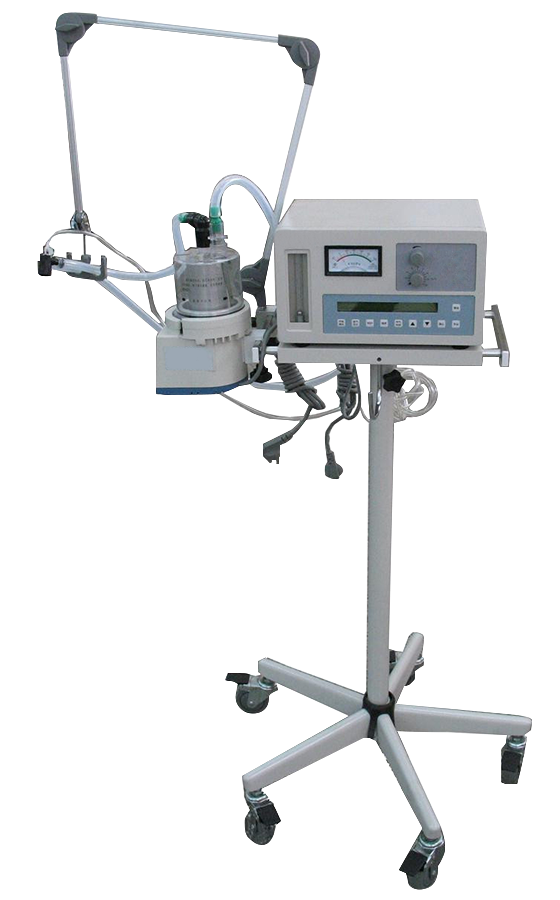

Intensive Care Ventilator KVI- A102 is designed to meet the needs of clinical respiratory management for Infants with respiratory disorder. It has a provision to work with innovative ventilation modes like constant flow, pressure limit and time cycle ventilation.
Features
Innovative ventilation mode
Safe and Reliable
Compact and Reasonable
specifications
| Tidal Volume |
10 ml ~ 300 ml |
| Standard Ventilation Mode |
CMV, IMV, CPAP, Manual |
| Application |
Pediatric |
| Inspiratory Flow |
3 L/min ~ 20 L/min |
| Respiration rate |
1 bpm ~120 bpm |
| I:E Ratio |
1:1 to 1:3 |
| Oxygen Concentration |
21 % ~ 100 % |
| Pressure trigger Range |
-1.0 to 0 kPa |
| Flow Trigger Range |
0 to 10 L |
| PEEP Type |
Pneumatic Driven, Electronic Control |
| Inspiratory Pause Time |
0.2 s ~ 3.0 s |
| Maximum Security Pressure |
≤ 10 kPa |
| PEEP Range |
0 kPa ~2.0 kPa |
| Max Ventilation Volume |
> 5 L/min |
| Input Pressure |
0.15 MPa ~ 0.3 Mpa |
| Inspiratory Pressure |
1 kPa ~ 9 kPa |
application
Used in operating rooms, NICU, and other departments for pulmonary life-support during acute lung injury or respiratory distress which result in inadequate oxygenation or ventilation inability to protect the airway fluids.
