Overview

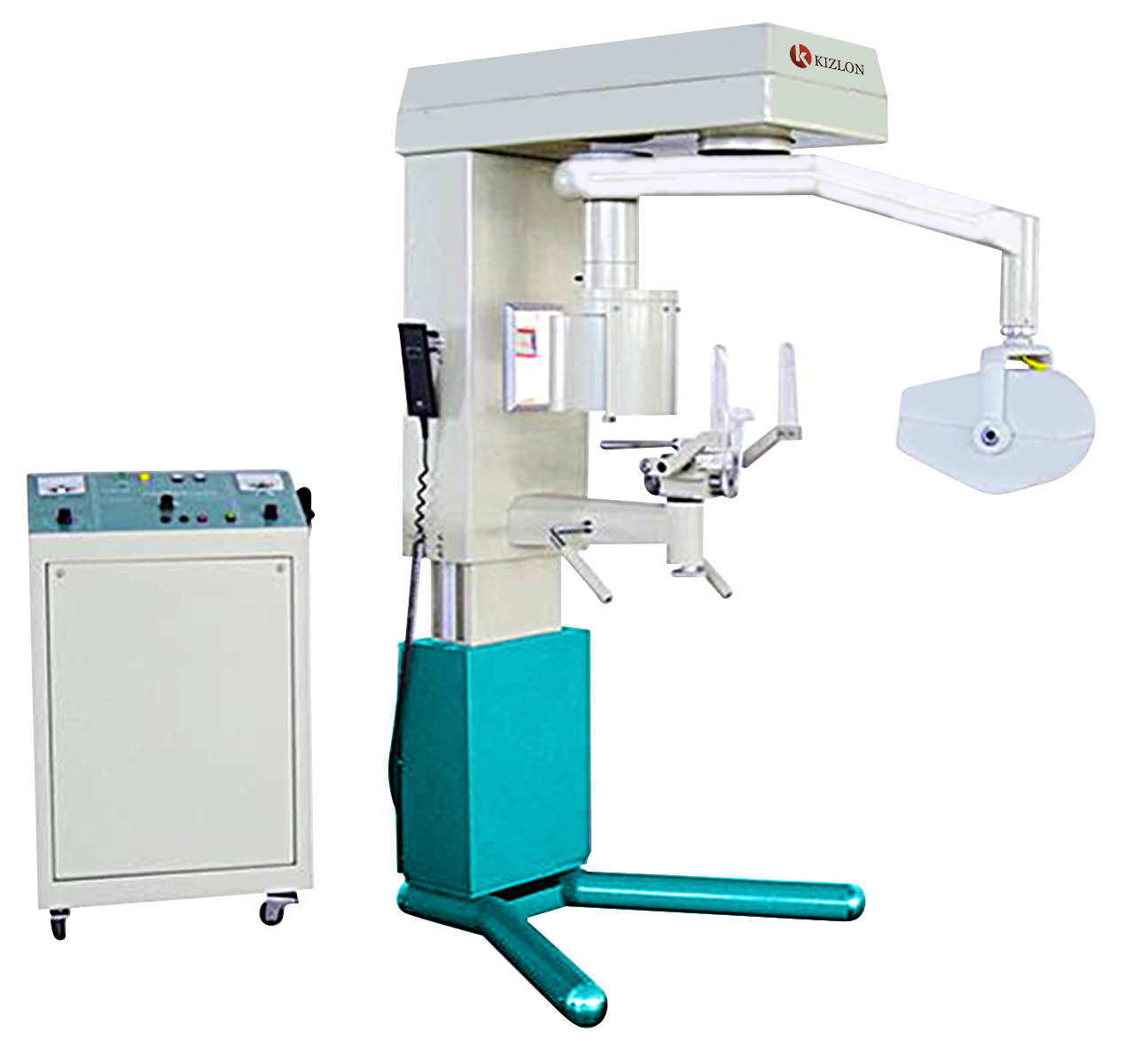

Dental OPG X-ray KDX-B100 is a panoramic extra-oral imaging modality unit designed on the principle of curvature tomography. System utilizes oil immersed and self-cooling technology for longer sustenance. Micro-focus technology ensures clear image and accurate diagnosis.
Features
Full 360° rotation
Micro focus technology
Automated Elevation motor
Maxillary sinus exam
specifications
| Tube Voltage |
90 kVp |
| Tube Current |
10 mA |
| Exposure Time |
16 s |
| Tube Focus |
0.8 mm |
| Film Size |
150 × 300 mm |
| Charger Input |
AC : 220 V ± 10 %, 50 Hz ,1.8 kVA |
| SSD (Source Skin Distance) |
1120 mm |
| Weight |
228 kgs |
application
Used in dental clinics for dental X-ray imaging to reveal impacted wisdom teeth, maxillary arch, mandible, lower jaw or jawbone, maxillary sinuses, nasal sinuses and the whole 32 teeth area
