Overview

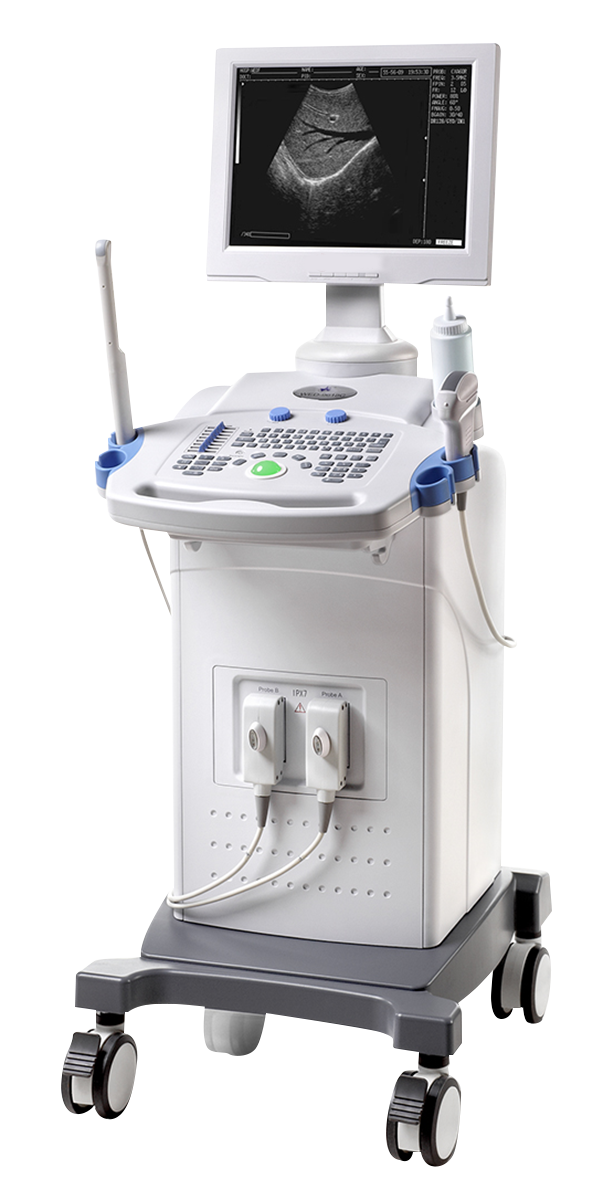

Ultrasound System with Trolley KUS-A100 is a cart-based B/W digital ultrasound imaging system equipped with 15” LCD screen and core features such as digital beam-forming, ultrasonic frame-forming, real-time dynamic aperture control, advanced frequency scan, dynamic focusing for efficient measuring and spot-analysis of the body area under study.
Features
Scan-angle adjustability
Suitable for general, obstetric, cardiac
Automatic report generation(Normal/OB)
Multi-operational imaging workstation
Automatic Probe identification
specifications
| Display size |
15-inch LCD screen |
| Display depth |
250 mm |
| Ultrasound modes |
B, B+B, B+M, M, 4B |
| TGC |
Total gain, 8 segment TGC |
| Depth adjustability |
16 level of real-time depth adjustments |
| Probe scan methods |
Convex, Linear, Micro-convex |
| Cine-loop |
≥ 400 frames |
| Frame storage |
≥ 32 permanent storage frames |
| Image formats |
BMP, JPG, DCM, TIF |
| Body marks |
40 types |
| Zoom |
2 times in real-time and frozen |
| Output interface |
Video, RS-232, USB 2.0 |
| Dimensions |
570 x 710 x 1240 |
| Weight |
60 Kgs |
application
Used in examination rooms, consultation clinics, primary healthcare centers and rescue ambulance or outdoor examinations for point of care ultrasonography imaging for symptomatic examination and diagnosis at patient’s bedside.
